Flow Rates: Flow Range of 1 GPM – 8 GPM (4 LPM -30 LPM)

“An Oil Dehydrator as Simple to use as a Filter Cart”

The PHoenix™ Membrane Oil Dehydrator and Purifier is a simple and effective portable or permanent kidney loop filtration system that works offline or online to remove:

  • 100% Free Water
  • 100% Emulsified Water
  • Dissolved Water Below 50 ppm
  • Dissolved Gases
  • Particulate Below ISO 16/14/12

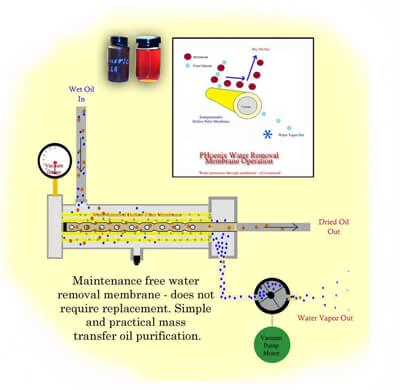

The PHoenix™ does not use disposable water absorbing filters that require constant changing. Instead it dehydrates water from the oil using a proprietary, maintenance free, hollow fiber technology, along with an online miniature vacuum source, which has unlimited water removal capabilities.

The PHoenix™ is extremely portable and compact, so it can get into spaces normal dehydrators cannot. It also has very few moving parts compared to standard dehydrators. Its set and forget design makes it as simple and easy to use as a filter cart.

This versatility means that when it is not being used to remove water from contaminated lube or hydraulic systems, it can be used as an oil transfer/filter cart. If supplied with the optional Aquatrex or MTrak moisture monitoring system, the PHoenix™ can also become a diagnostic tool for tracking intermittent water ingression into reservoirs and alerting operators of potential problems.

Ask us about our RENTAL or LEASING opportunities.

Applications:

  • Power Generation
    • Combustion Turbine Lube
    • Coal Mill Gear Boxes
    • Conveyor Gear Boxes
    • Boiler Feed Pump Lube
    • Windturbine Gear Boxes
    • EHC Control
    • ACC – WCC Gear Boxes
    • Scrubber Equipment Gear Boxes
  • Light Industrial
    • Oil Reclamation
    • Blow Molding Hydraulic
    • Machine Tool Hydraulic
    • Injection Molding
    • Automotive transfer line Hydraulic Oil
  • Fuels and Chemical
    • Drilling Equipment Gear Box Flushing
    • Extruder Gear Boxes
    • Compressor Lube
    • Boiler Feed Pump Lube
    • Offshore Drilling Platforms
  • Transportation
    • Ship Board Hydraulic-Lube
    • Diesel Locomotive Gear Box
    • Transmission Systems
  • Pulp & Paper
    • Wet end/dryer lube
    • Press section lube and hydraulics
    • Boiler Feed Pump lube
    • Cooling Tower Gear Boxes
  • Military
    • Military Equipment Hydraulics
    • Aircraft – Road Equipment
  • Agriculture
    • Conveyor Gear Boxes
    • Harvesting Equipment Hydraulic
  • Food & Beverage
    • Food Grade Hydraulic Oil
    • Conveyor Gear Boxes
  • Primary Metals
    • Roll mill gear and pinion lube

Downloads

Membrane Based Lube Hydraulic Oil Purifiers
  • Simple Design
  • Easy to Use
  • Few Moving Parts
  • Small Footprint
  • Very Little Maintenance Required
  • Unlimited Water Removal
  • Autonomous
  • Extremely Portable
  • EFFECTIVE
  • Flow Range of 1 GPM – 8 GPM (4 LPM -30 LPM)
  • Remove Free, Emulsified, and Dissolved Water
  • Entrained Air and Gas Removal
  • Dimension and Arrangement Design Flexibility
  • Condensate Water Holding Tank
  • PLC Control Start/Stop
  • Flow Rates Range from 1 GPM to 8 GPM
  • Filtration
  • Inlet Oil Sample Valve
  • 8 micron B2000 Spin-On Filter
  • Differential Indicator
  • Outlet Oil Flow Indicator Sight Glass
  • Water Removal Membrane
  • Electrical Service
  • 110V or 220V
  • 10 Amps Max Draw
  • High Quality Heavy Duty Washdown Motor
  • Pump Specifications
  • Self-Priming Positive Displacement Gear Pump
  • Low Maintenance Gast Rocking Piston Vacuum Pump
  • Material of Construction
  • Assembly Frame: Chemically Resistant Powder Coating
  • Cart Rigging and Lift Lug
  • JIC or ORB Hydraulic Leak Resistant Fittings and Connections (where allowable)
  • Puncture Proof Tires
  • Operating Temperature
  • Nitrile (Buna-N): -40°F to 150°F
  • Fluorocarbon (Viton)*: -15°F to 200°F
  • *High Temperature/Phosphate Ester Design
  • Gear Oils up to 3000 cSt
  • Hydraulic Oils
  • Lube Oils
  • EAL Fluids – PAG & PEG
  • Phosphate Ester (optional)
  • Inlet and Outlet Hoses
  • Aquatrex Moisture Monitoring System
  • Mineral Oil or Phosphate Ester Compatibility
  • Pneumatic, Explosion Proof
  • Handheld
