Flow Rates: 200 GPM to 4,000 GPM
PFPUSA has a large rental fleet of both Vertical and Horizontal Pre-Filter Vessels, ready to dispatch even for last-minute emergencies. (We also have Pre-Filter Vessels for sale as well.) We offer Vertical Cartridge and Bag Style Filter Vessels, as well as, one of the largest High Flow Filter Vessel inventories in the industry. All are designed to remove particulate contamination, such as, dirty, rust, sediment, pipe scale, sand and metal from the fuel stream. They are typically located upstream or in front of Clay Treaters and Coalescer Separators. This is designed to protect and prolong the life of the more expensive filter cartridges, which is especially important if an emergency situation arises.
Our Filter Vessel Rentals are available in flow rates up to 4,000 GPM and in various pressure ratings.
PFPUSA offers both cartridge and bag style filter vessels for rent.
They are available for either short-term or long-term rental periods.
Materials of Construction
- Carbon Steel
- Stainless Steel
Pre-Filter Inventory
(Please note, we are continually adding to our fleet. If you don’t see what you need here, give us a call with you requirements and we help you determine the best possible equipment required to solve your problem.)
| Model #: | Description: |
|---|---|

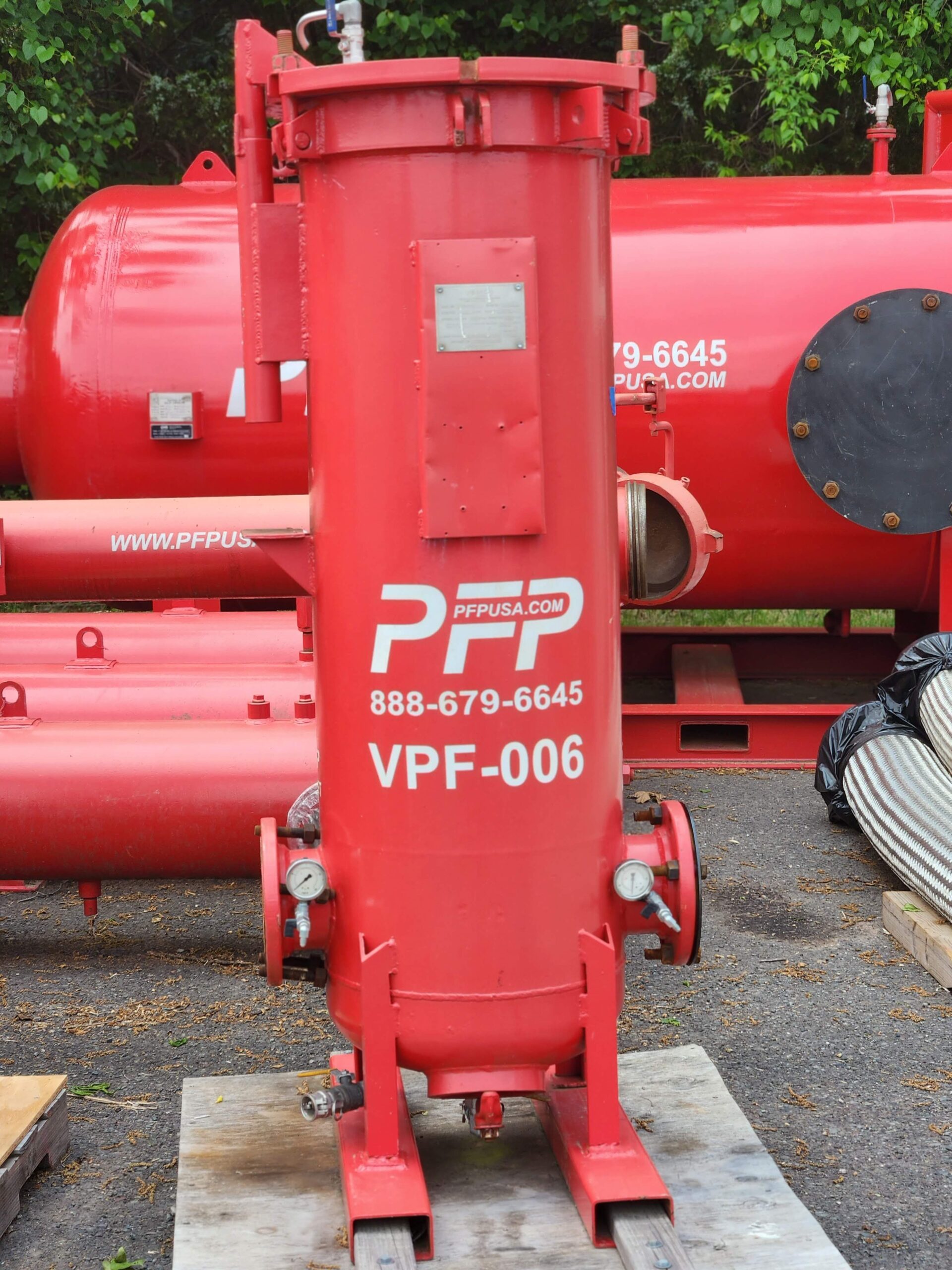

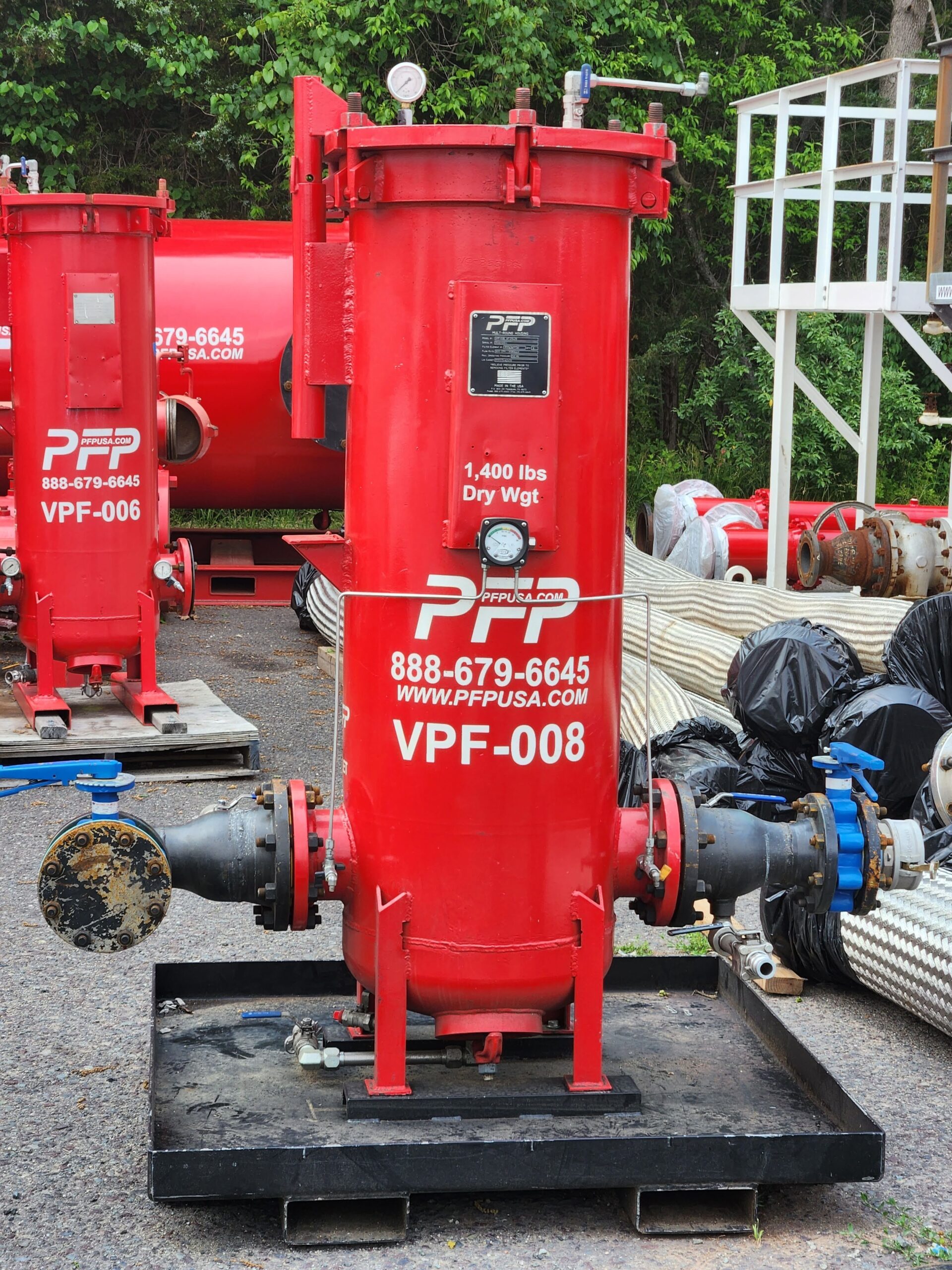

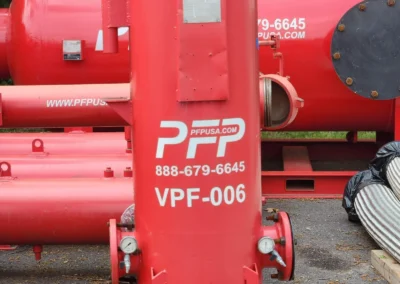

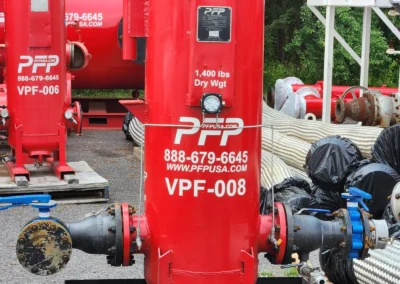

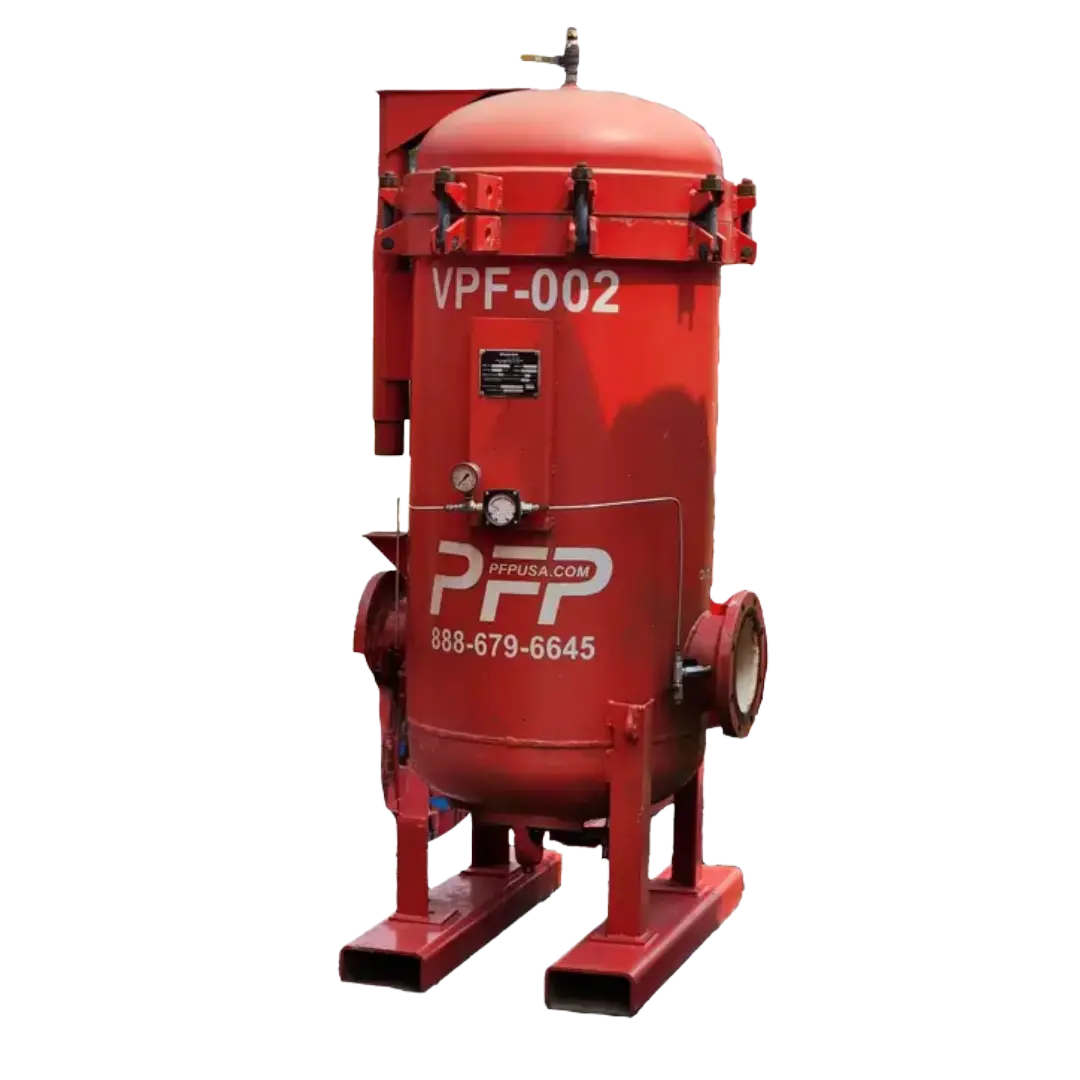

| Vertical Pre-Filter Vessels | |

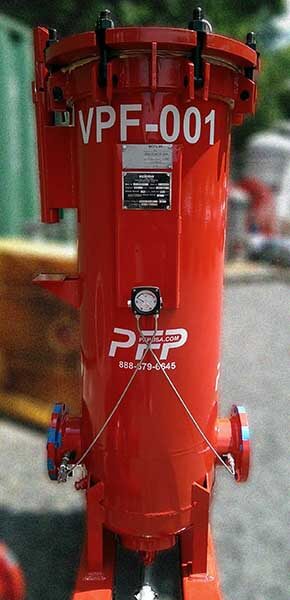

| VPF-001 | 900-GPM Vertical Pre-Filter Vessel; ASME Code-Stamped; 6”-150# Connections; 150 PSIG @ 200°F; Accepts (12) 644-Style Filter Elements |

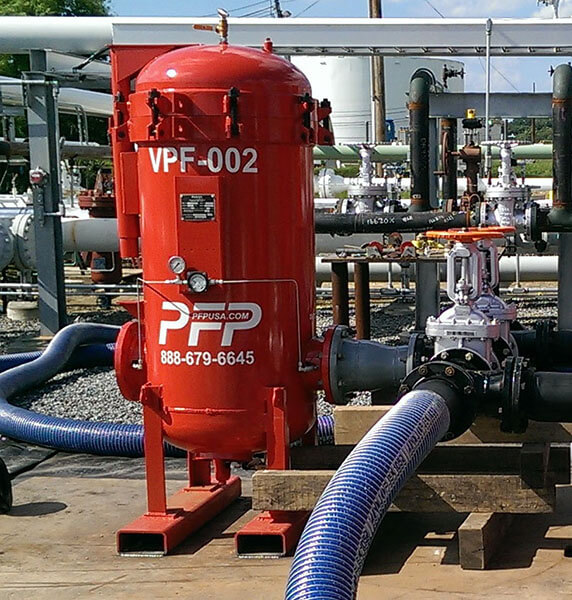

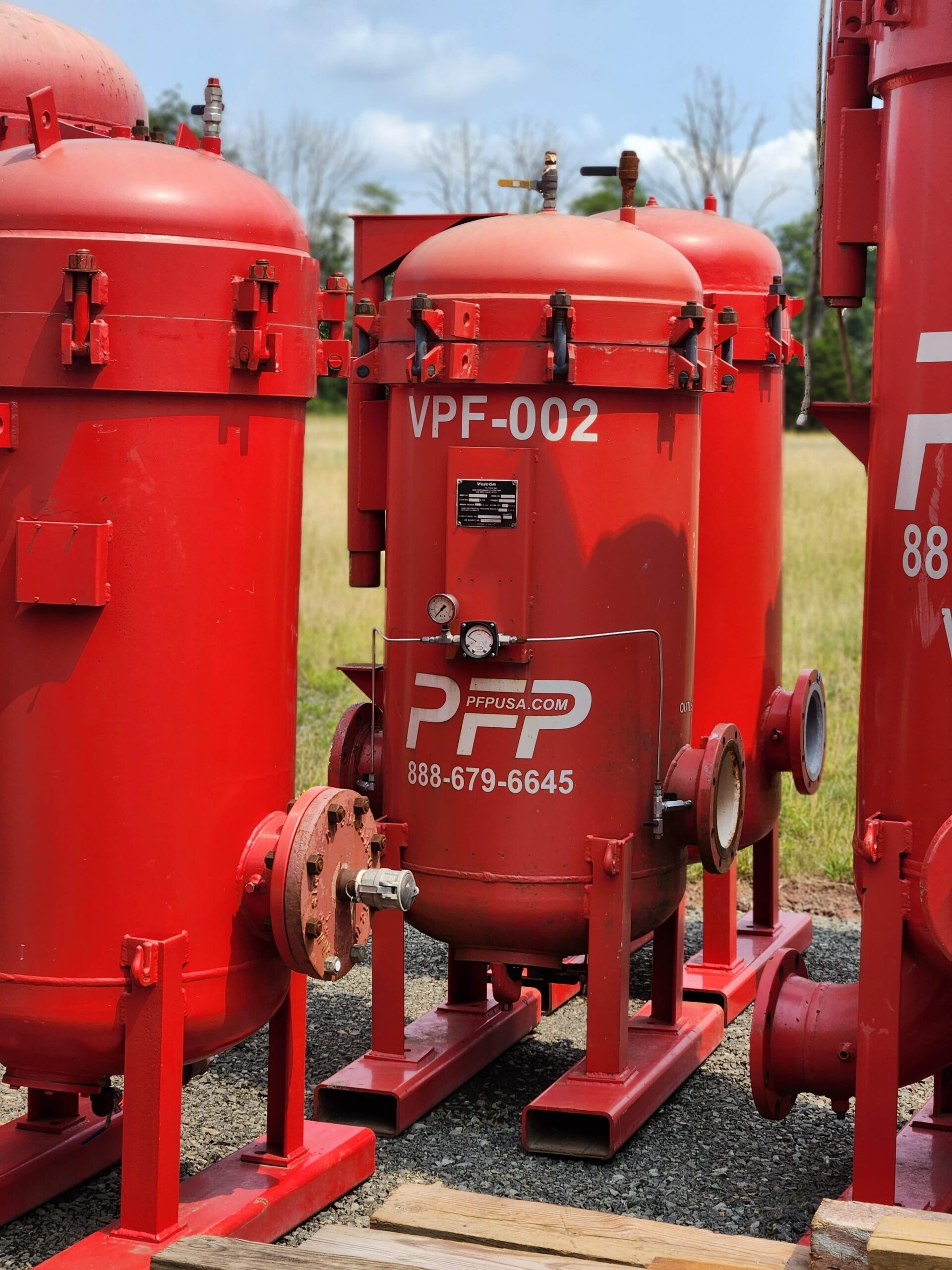

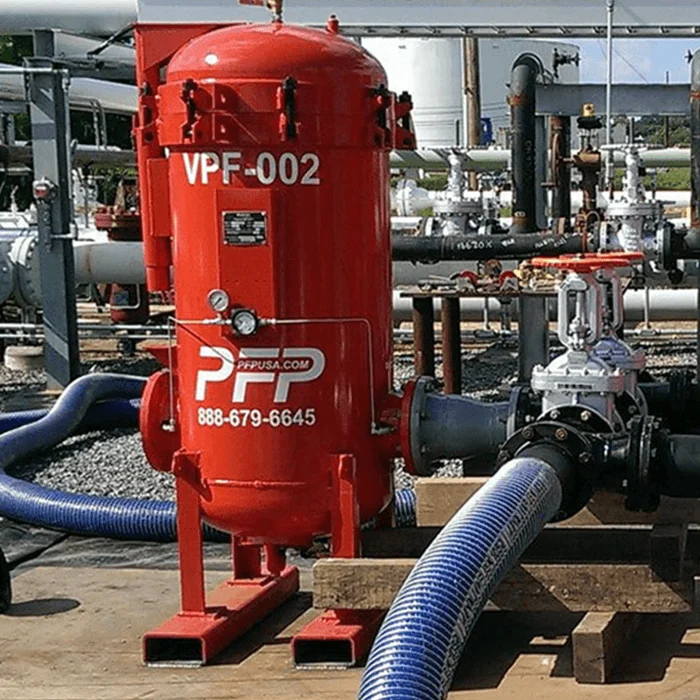

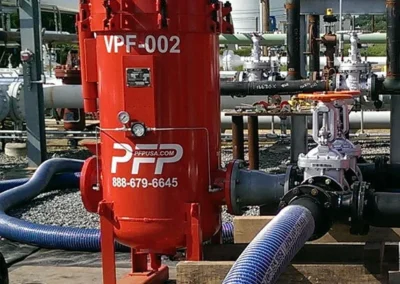

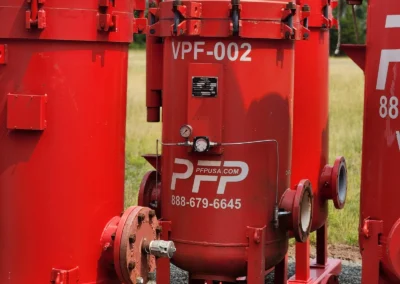

| VPFP-002 | 900-GPM Vertical Pre-Filter Vessel; ASME Code-Stamped; 6”-150# Connections; 150 PSIG @ 200°F; Accepts (12) 644-Style Filter Elements |
| VPF-003 | 1600-GPM Vertical Pre-Filter Vessel; ASME Code-Stamped; 8”-150# Connections; 150 PSIG @ 250°F; Accepts (13) 644-Style Filter Elements |

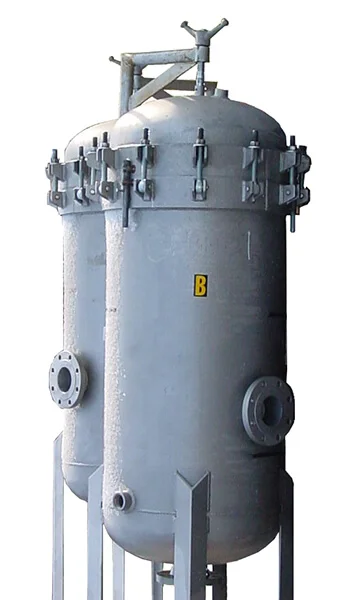

| Multi-Round Vertical Cartridge Filter Vessels | |
| MRC-001 | 1100-GPM Vertical Multi-Round Cartridge Filter Housing; ASME-Code U-Stamped; 316 Stainless-Steel Construction | 4”-150# Connections | Design Pressure: 150 PSIG @ 200°F Max | Accepts (55) 40” MB-Style Cartridges |
| MRC-002 | 1100-GPM Vertical Multi-Round Cartridge Filter Housing; ASME-Code U-Stamped; 316 Stainless-Steel Construction | 4”-150# Connections | Design Pressure: 150 PSIG @ 200°F Max | Accepts (55) 40” MB-Style Cartridges |
| MRC-003 | 525-GPM Vertical Multi-Round Cartridge Filter Housing; 304 Stainless-Steel Construction | 4” Flange Connections | Design Pressure: 150 PSIG @ 400°F Max | Accepts (12) 30” Double-Open-End cartridges per housing |
| MRC-004 | 350-GPM Vertical Multi-Round Cartridge Filter Housing; 304 Stainless-Steel Construction | 4” Flange Connections | Design Pressure: 300 PSIG @ 300°F Max | Accepts (35) 30” Double-Open-End or Single-Open-End cartridges per housing |

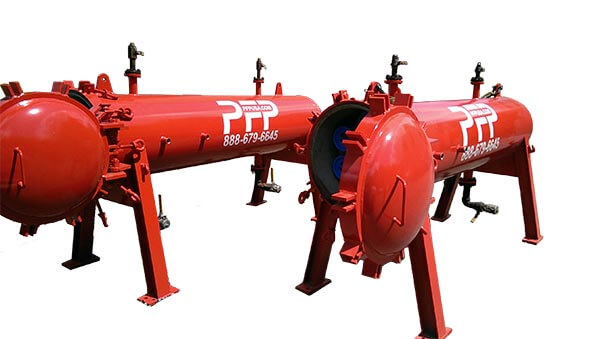

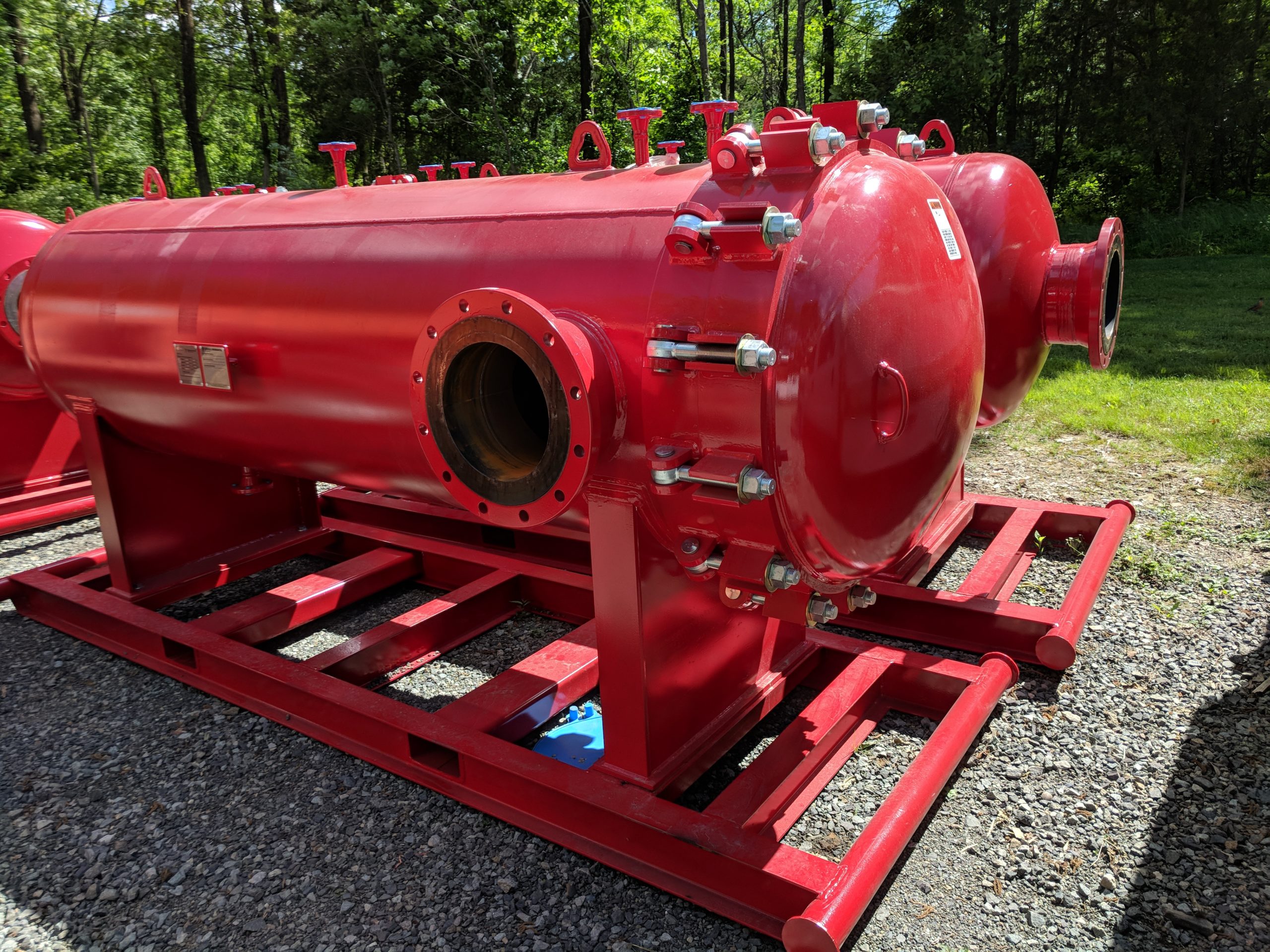

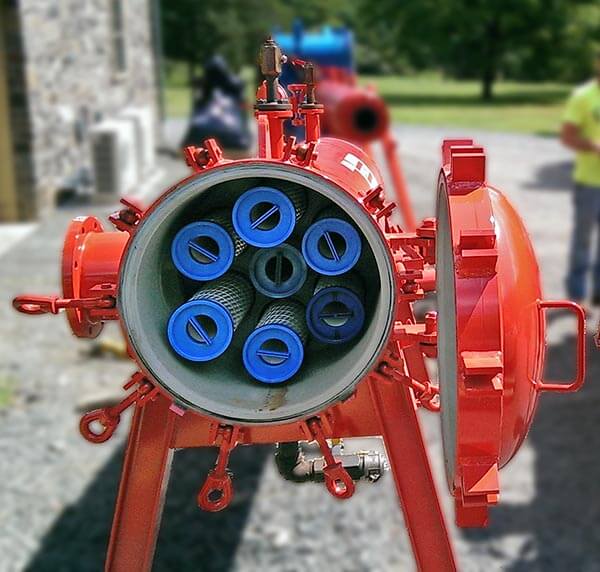

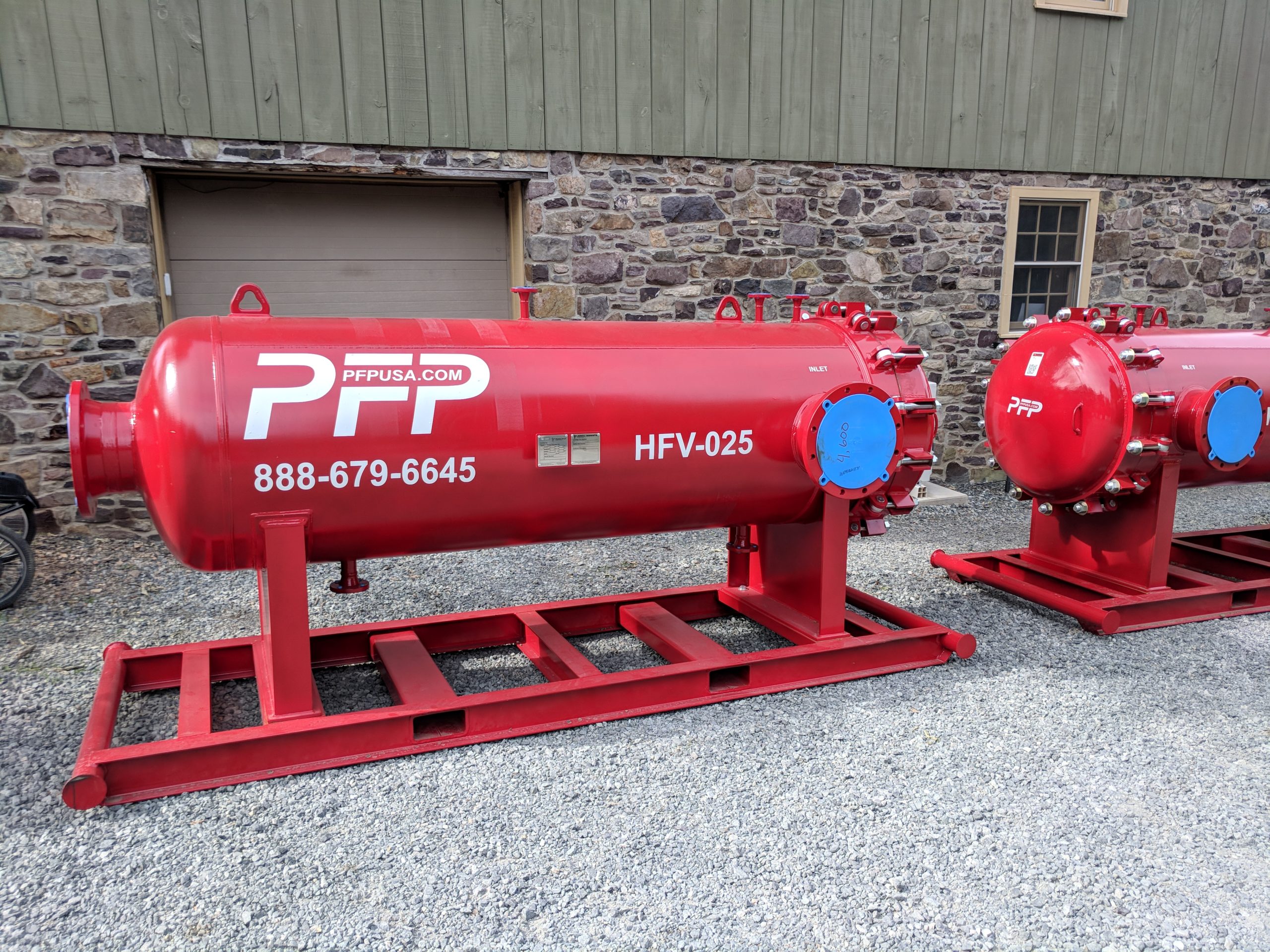

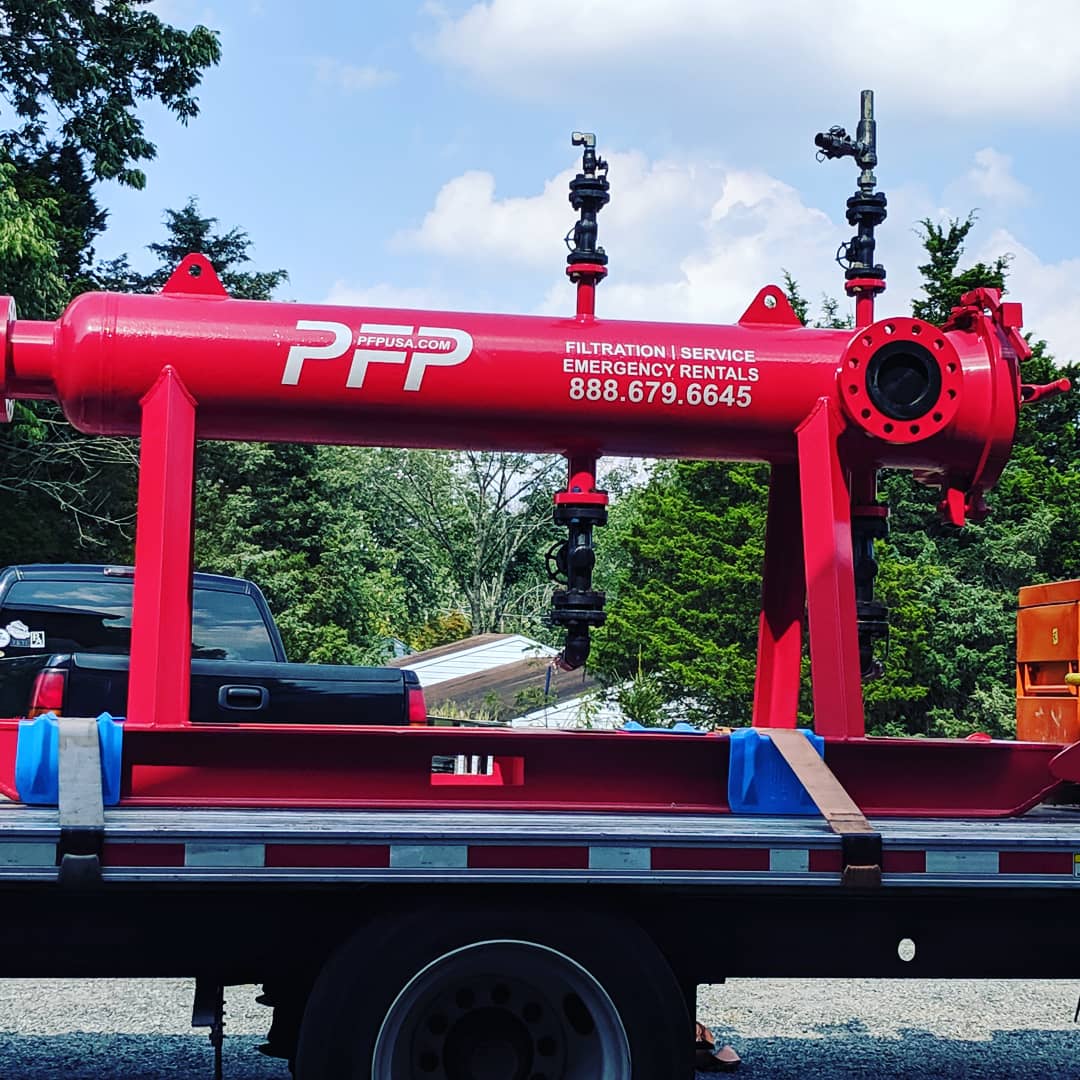

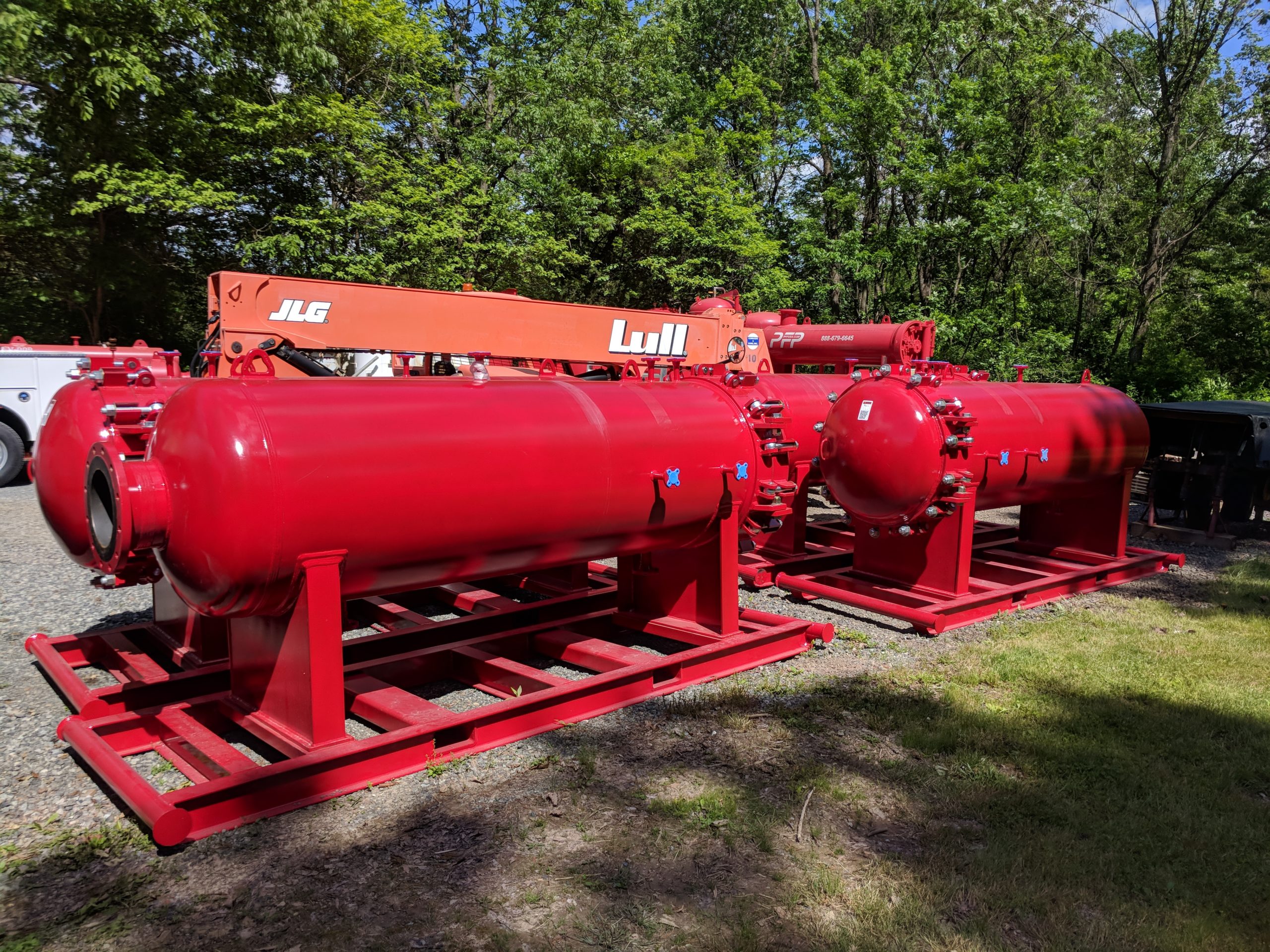

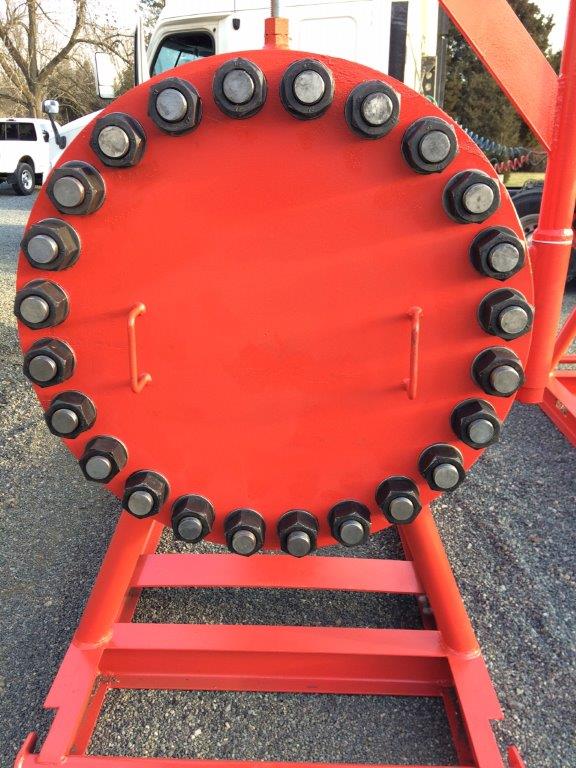

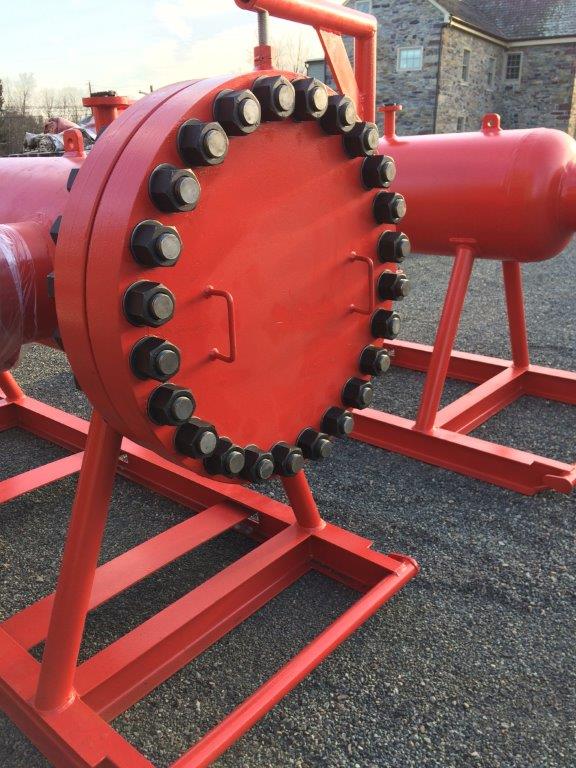

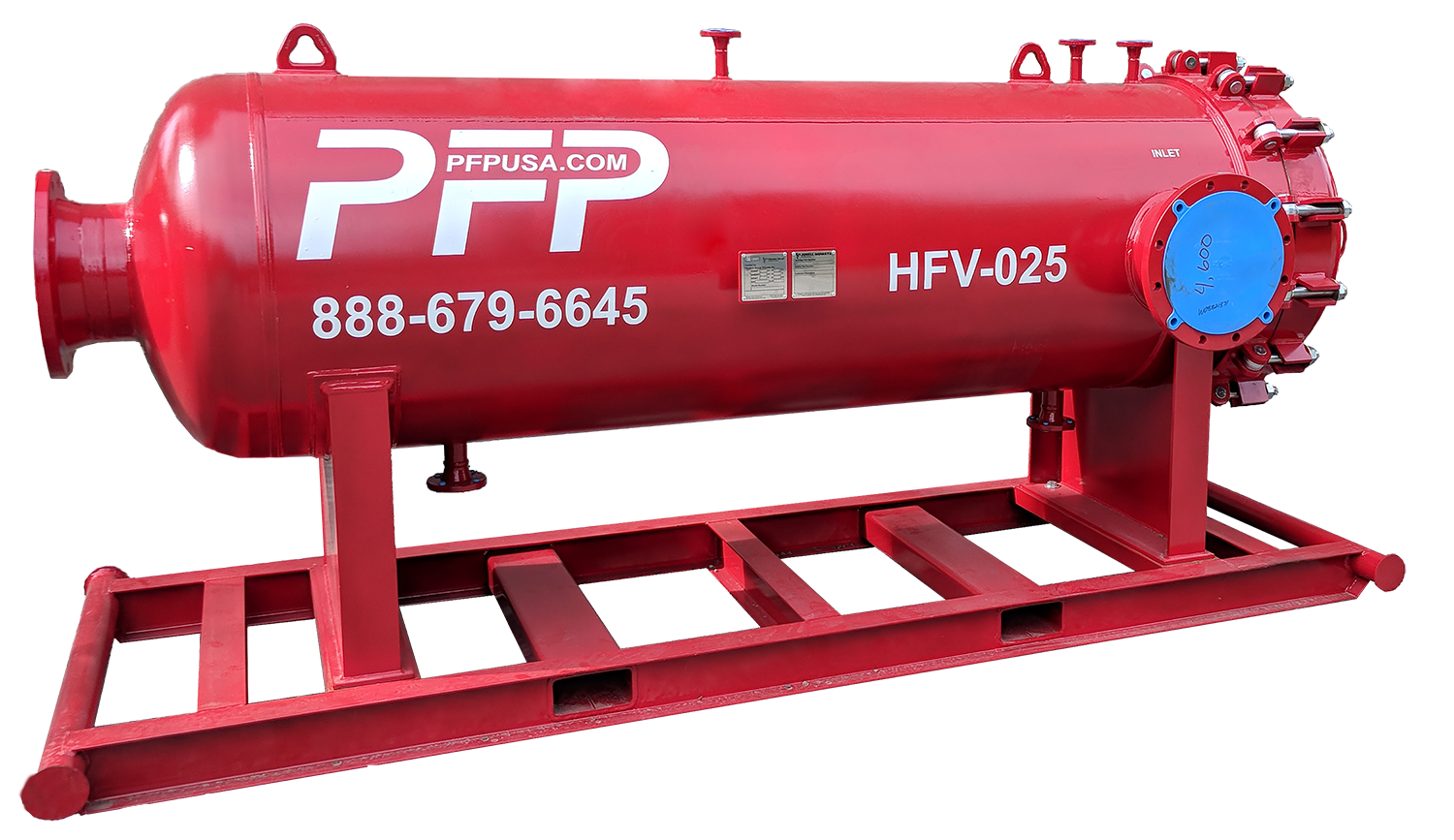

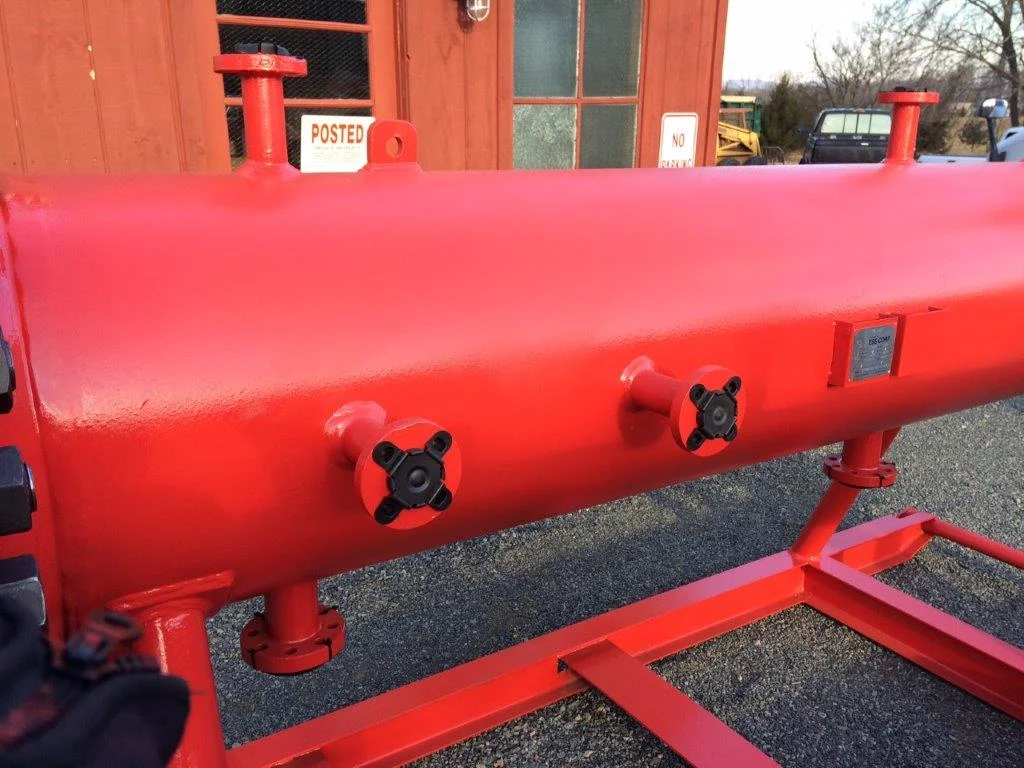

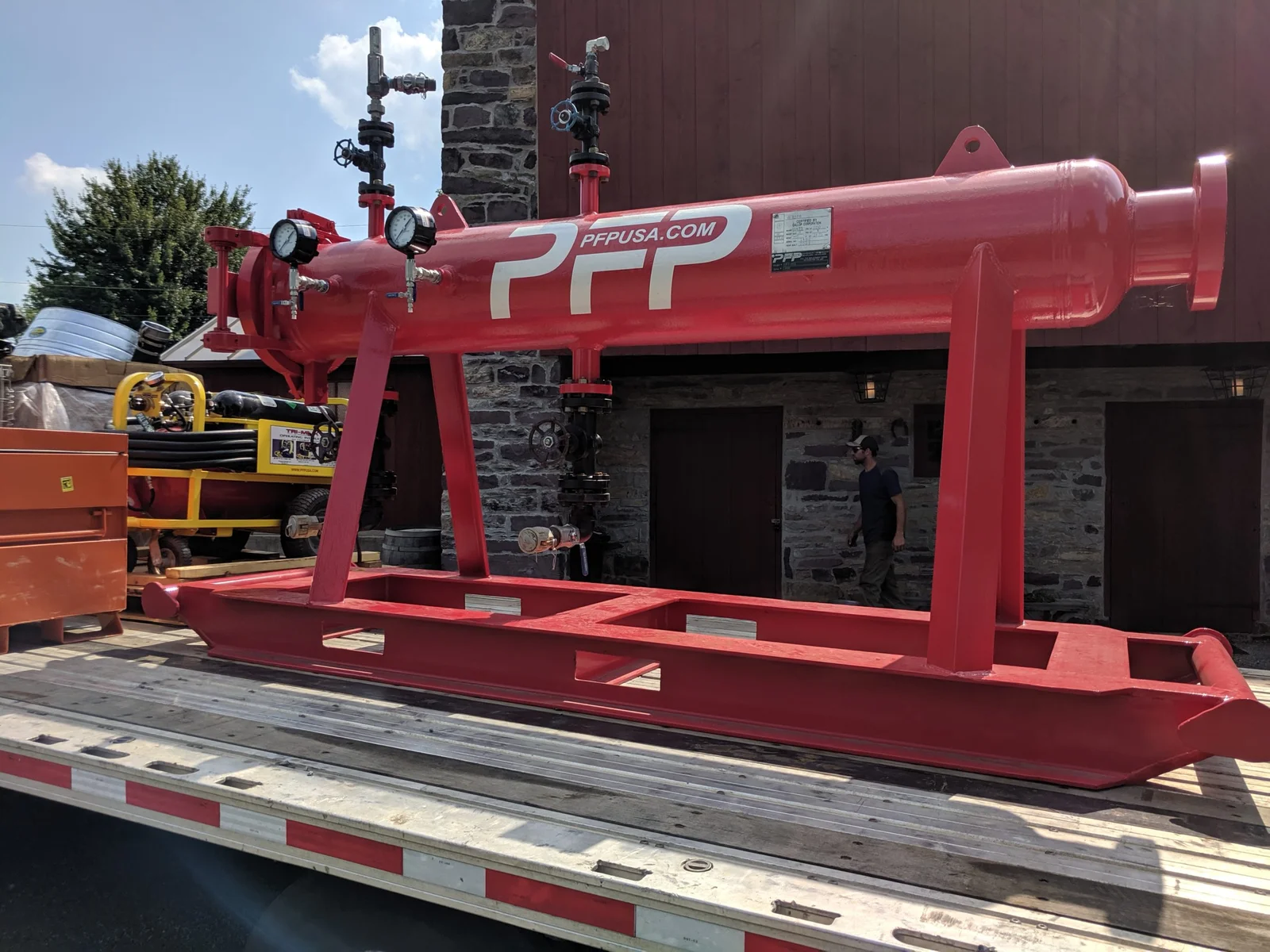

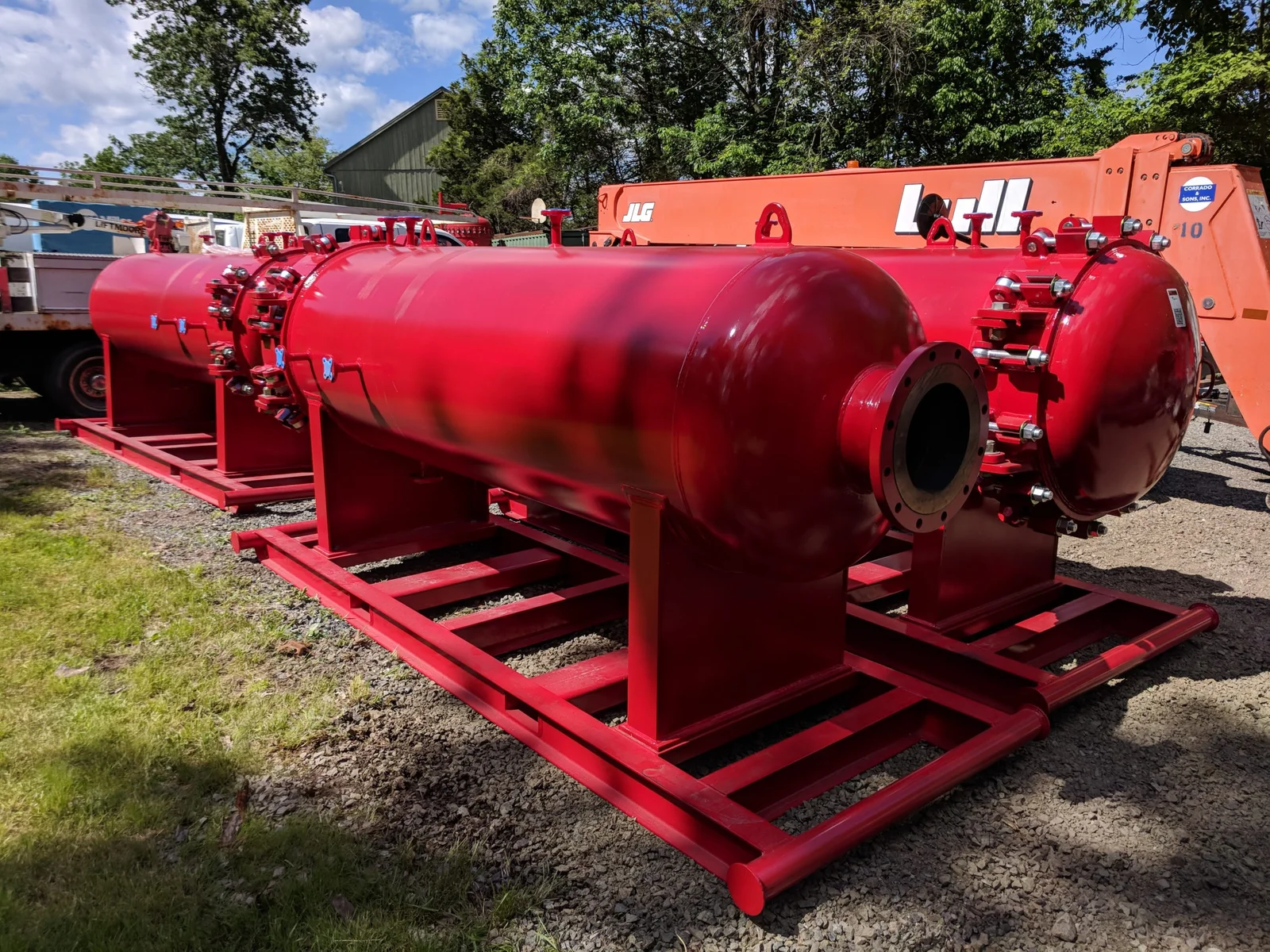

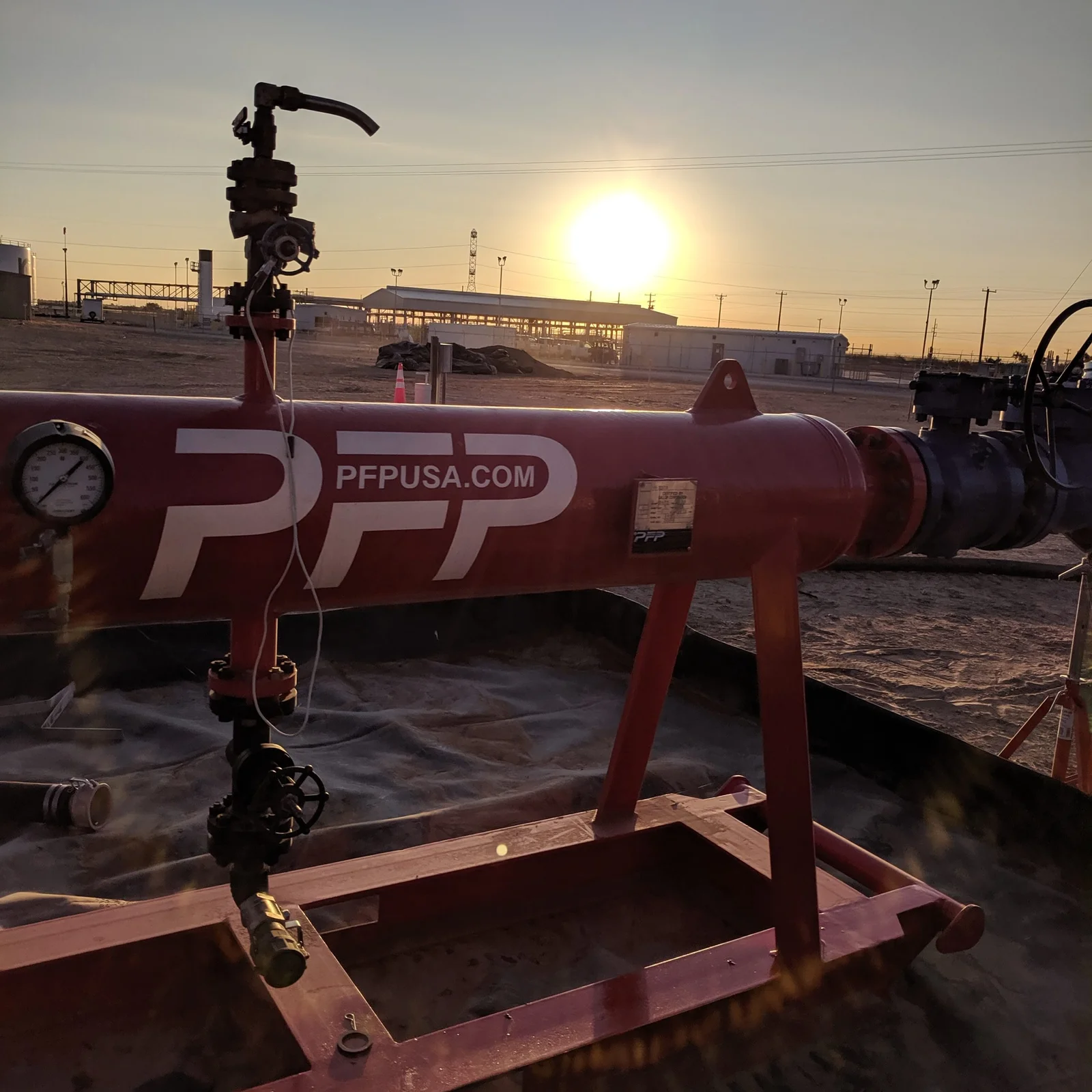

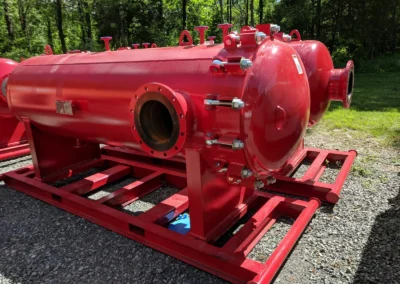

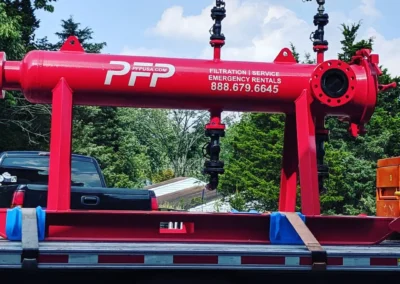

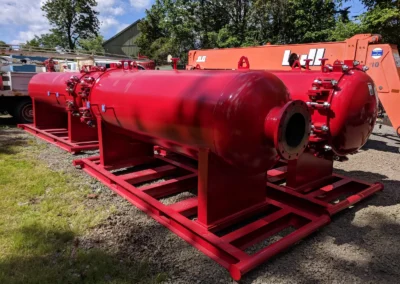

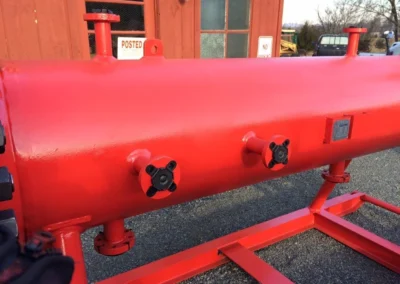

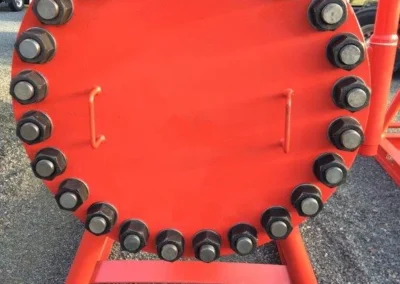

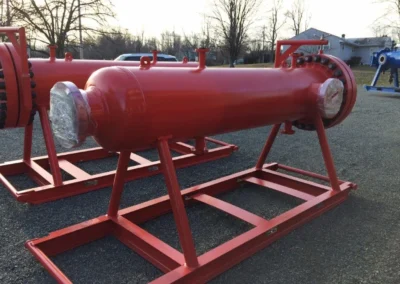

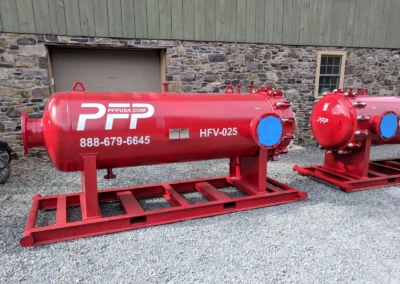

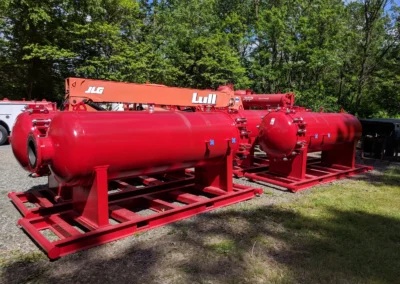

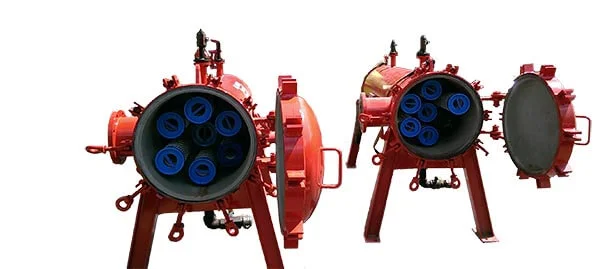

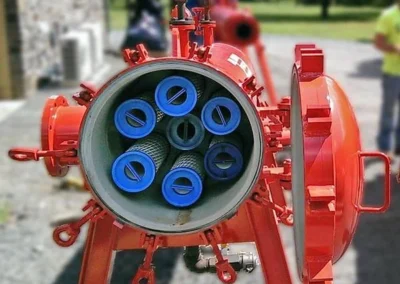

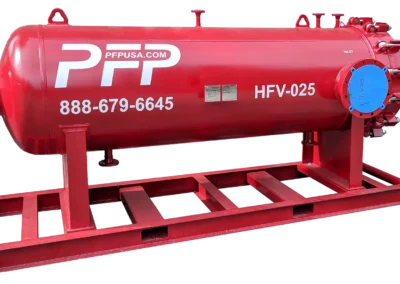

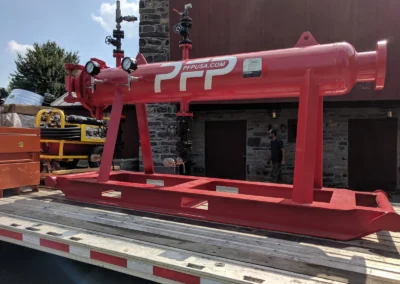

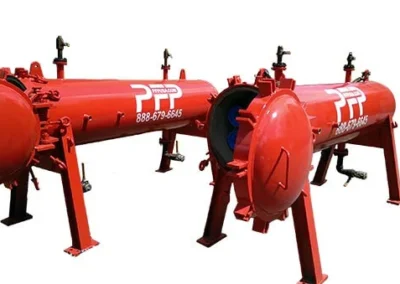

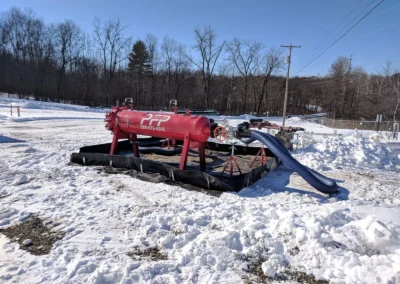

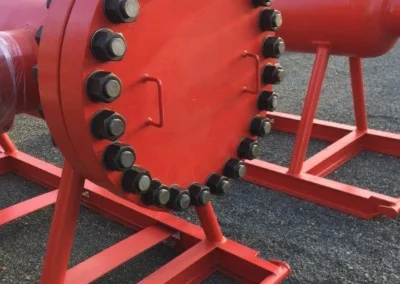

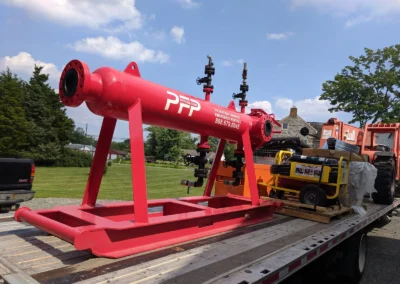

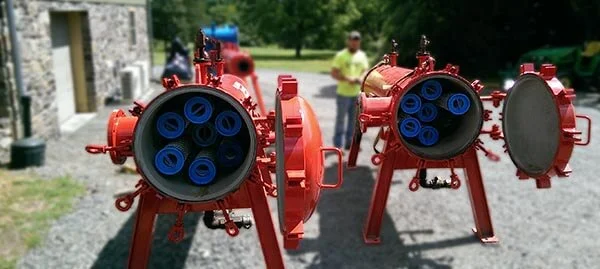

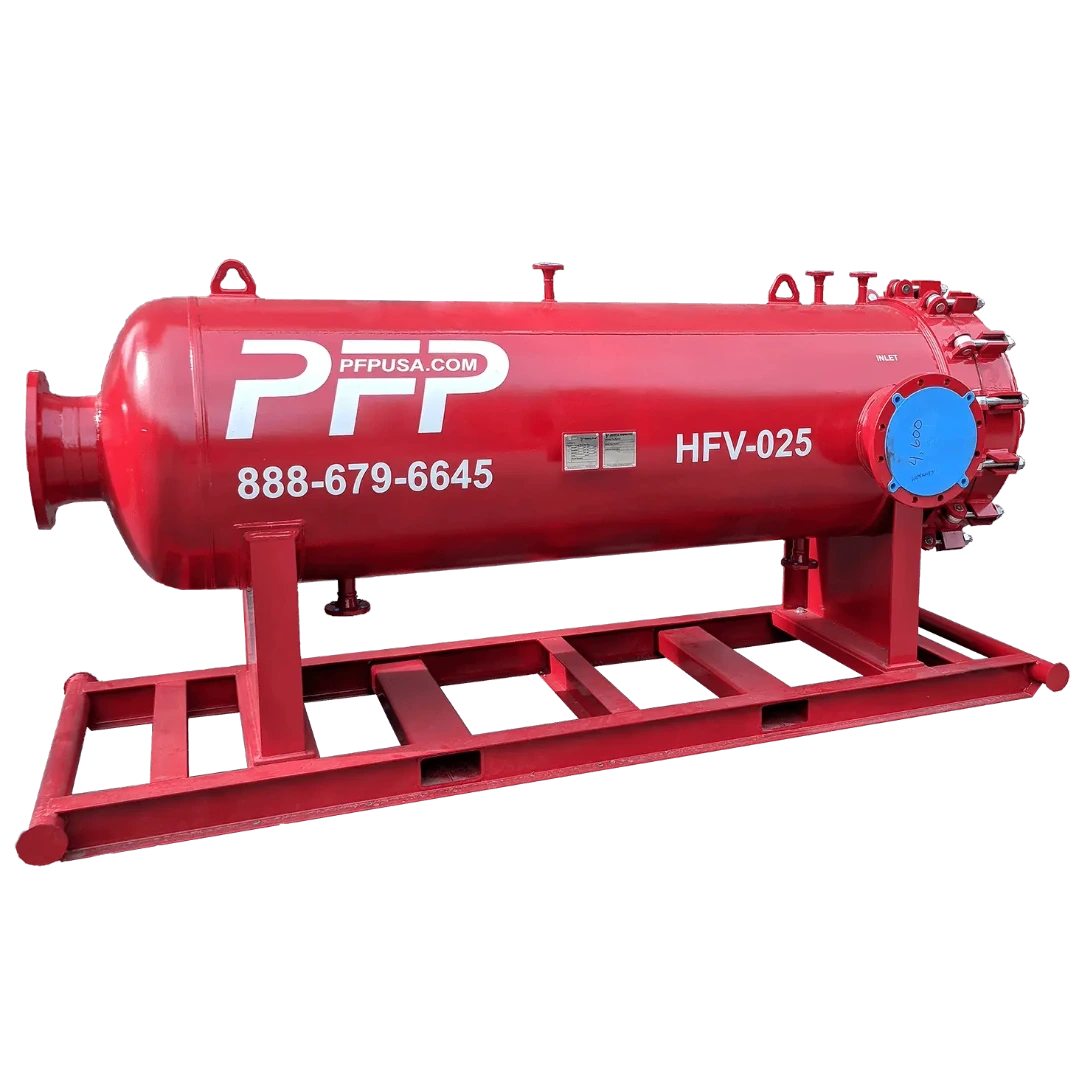

| Horizontal High Flow Filter Vessels | |

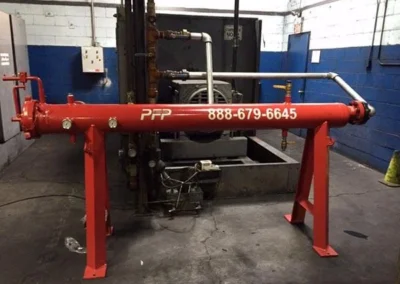

| HFV-001 | 300-GPM Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 3”-300# Connections | (1) 80” High-Flow Cartridge |
| HFV-002 | 300-GPM Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 3”-300# Connections | (1) 80” High-Flow Cartridge |
| HFV-003 | 900 GPM | 1475 PSI; ANSI 600# Carbon Steel Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 6”-600# Connections | (3) 80” High-Flow Cartridges |
| HFV-004 | 900 GPM | 1475 PSI; ANSI 600# Carbon Steel Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 6”-600# Connections | (3) 80” High-Flow Cartridges | TD Williams Closure |

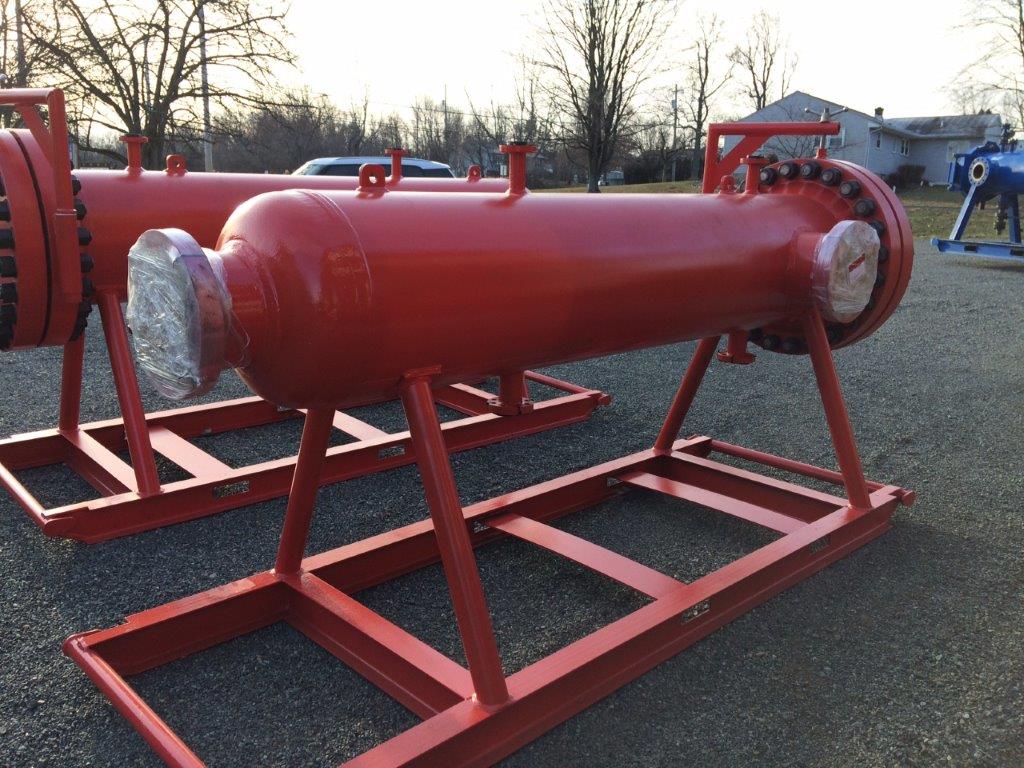

| HFV-005 | 4,500 GPM | 190 PSI; Carbon Steel Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 8”-150# Connections | (7) 80” High-Flow Cartridges |
| HFV-006 | 4,500 GPM | 285 PSI; Carbon Steel Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 8”-150# Connections | (7) 80” High-Flow Cartridges |
| HFV-007 | 4,500 GPM | 190 PSI; Carbon Steel Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 8”-150# Connections | (7) 80” High-Flow Cartridges |
| HFV-013 | 900 GPM | 1475 PSI; ANSI 600# Carbon Steel Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 6”-600# Connections | (3) 80” High-Flow Cartridges |
| HFV-014 | 600 GPM | 740 PSI; ANSI 600# Carbon Steel Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 4”-600# Connections | (2) 80” High-Flow Cartridges |
| HFV-015 | 600 GPM | 740 PSI; ANSI 600# Carbon Steel Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 4”-600# Connections | (2) 80” High-Flow Cartridges |
| HFV-016 | 600 GPM | 1480 PSI; ANSI 600# Carbon Steel Horizontal High-Flow Pre-Filter Vessel | ASME Code-Stamped | 4”-600# Connections | (2) 80” High-Flow Cartridges |

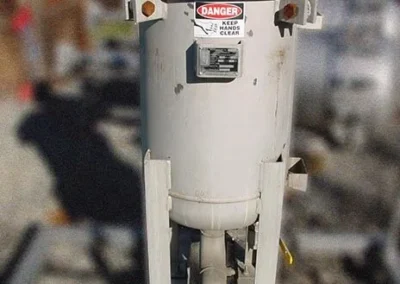

| Bag Filter Vessels | |

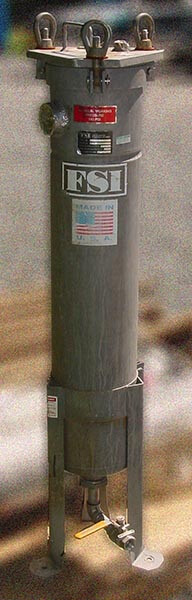

| BFV-001 | 200 GPM | 304 Stainless Steel #2 Bag Filter Vessel | 2” NPT Connections | 150-PSI Pressure Rating | Accepts (1) #2 Size Filter Bag |
| BFV-002 | 600 GPM | 304 Stainless Steel #2 Multi-Round Bag Filter Vessel | 3”-150# Connections | 150-PSI Pressure Rating | Accepts (3) #2 Size Filter Bags |
| BFV-003 | 800 GPM | 304 Stainless Steel #2 Quad-Bag Filter Vessel | 2” Cam-and-Groove Adaptor Connections | 150-PSI Pressure Rating | Accepts (4) #2 Size Filter Bags | Can utilize all four bag vessels or just one at a time |
| BFV-004 | 400 GPM | 304 Stainless Steel #2 Dual-Bag Filter Vessel | 2”-150# Connections | 150-PSI Pressure Rating | Accepts (2) #2 Size Filter Bags |
| BFV-005 | 200 GPM | 304 Stainless Steel #2 Multi-Round Bag Filter Vessel | 2”-150# Connections | 150-PSI Pressure Rating | Accepts (2) #2 Size Filter Bags |
| BFV-006 | 400 GPM | 304 Stainless Steel #2 Multi-Round Bag Filter Vessel | 3”-300# Connections | 300-PSI Pressure Rating | Accepts (4) #2 Size Filter Bags |
- Vertical & horizontal configurations available
- Designed to filter solids
- Easy service and reduced maintenance costs
- EI 1596 Design & Construction
- Built to ASME Code, Section VIII, stamped and certified or "CE" marked
- Standard Design for 150 PSI (10.5 kg/cm2) @ 250°F (121°C) – higher pressure and temperature ratings available upon request
- Jet Fuel
- Diesel Fuel
- Gasoline
- Lube Oil
- Hydrocarbons
- Natural Gas LNG
- Propane
- Automatic air eliminator
- Automatic air eliminator check valve
- Differential pressure gauge
- Pressure relief valve
- Sampling probe
- Manual drain valve
- Refining
- Aviation
- Airports
- Tank Farms
- Petrochemicals
- Pipelines
- Pigging
- Terminals
- Oil Production
- Compressor Stations
We can supply you with the temporary Cargo Hose, Gate Valves, Tees, Elbows, Pump, Portable Containment, and many more to provide you a complete turnkey set up. We have service crews available to set up, monitor, and breakdown the temporary systems as well.
Give us a call to discuss your application…888-679-6645!
