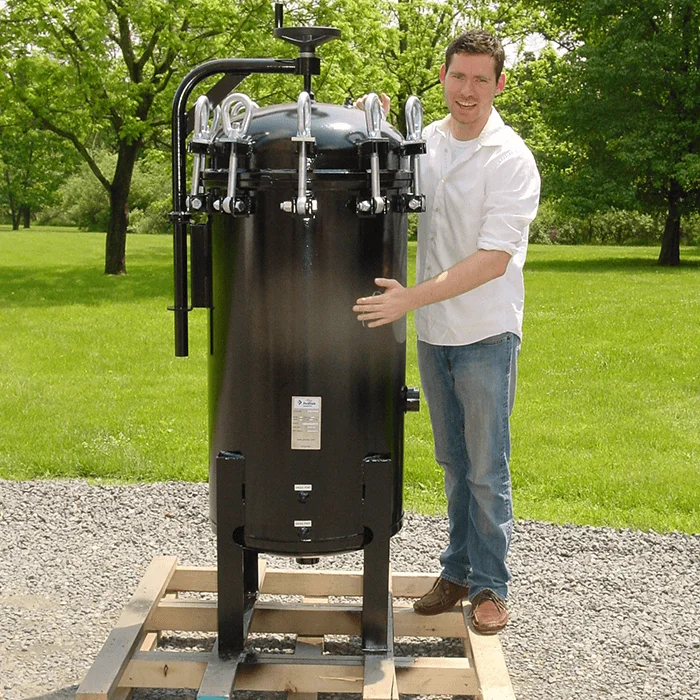

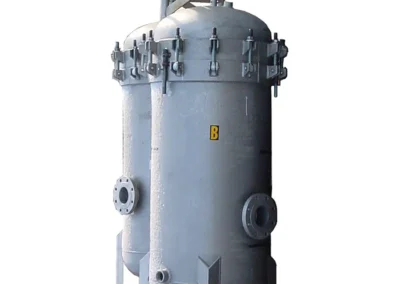

We offer various filter vessels for rent that meet a broad range of liquid and gas applications at flow rates up to 2,040 GPM (7,720 LPM), and in both single-cartridge and multi-cartridge formats. Most details of design, materials, construction, and workmanship of our vessels conform to ASME design code.
Applications
- Liquid
- Gas
- Food & Beverage
- Chemical Processes
- Petrochemical
- Paints & Coatings
- Industrial
Features and Benefits
- Built in accordance with ASME boiler and pressure vessel code.
- Available in 150 PSI (10.3 bar) and 300 PSI (20.7 bar) designs.
- Non-code design and construction (parallel to code standards) available.
- Mechanical cover lifts standard on most models.
- S85 and S102 feature hydraulic cover lifts (available on all models as an option).

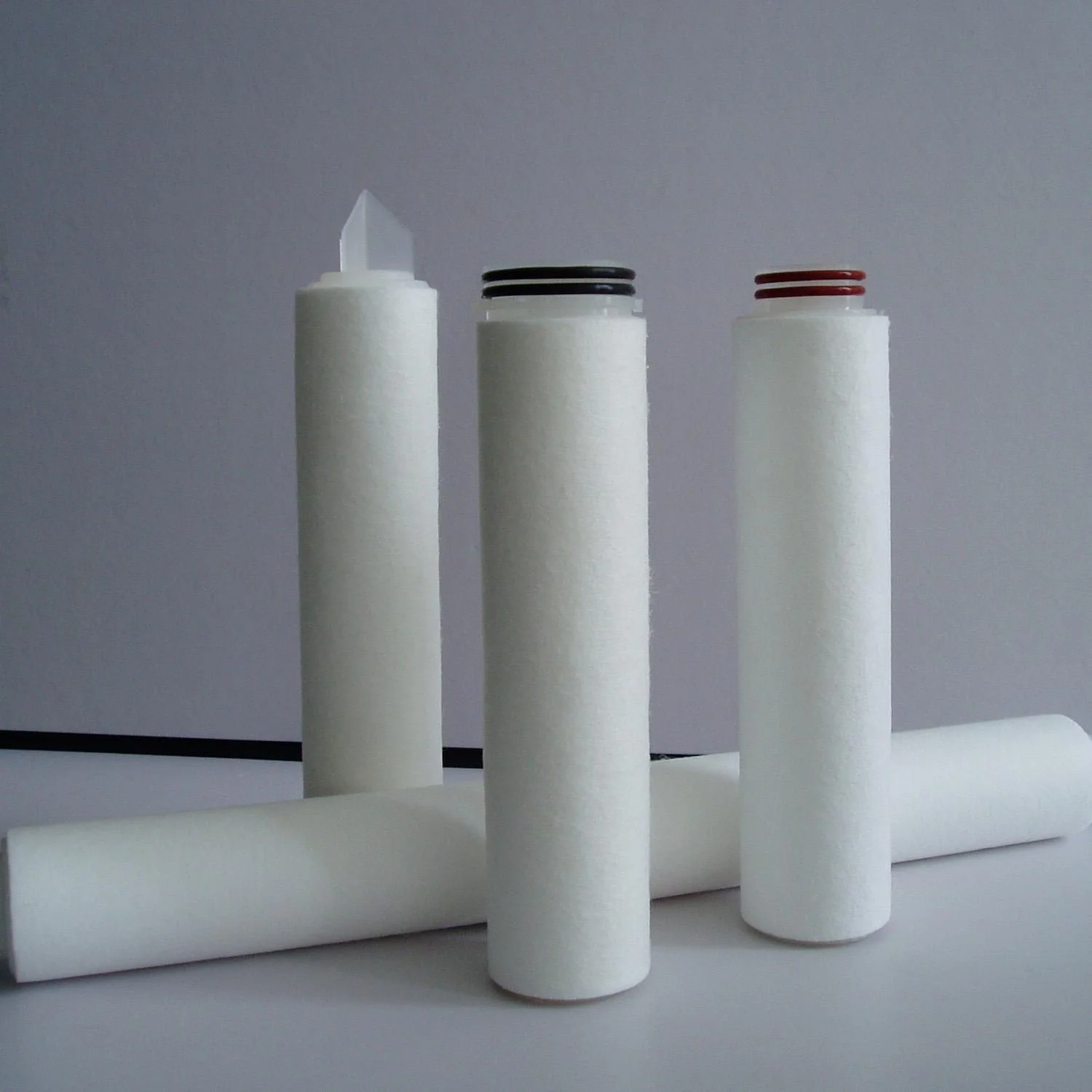

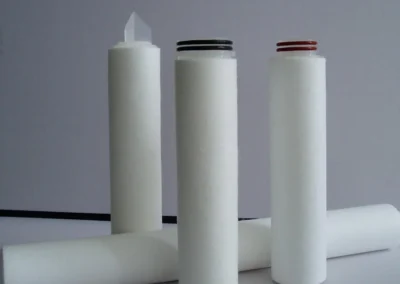

- Dual-purpose cartridge seats for use with double open-end and 2-222 O-ring single open-end cartridges.
- Materials of construction: carbon steel, 304 stainless steel, 316 stainless steel
- Buna-N O-ring closure seal provides positive cover-sealing.
- Viton* elastomer, neoprene, ethylene propylene rubber, and fluoropolymer elastomer (O-rings are also available for temperatures up to 500°F / 261°C)
- All S models feature swing bolts with closures for quick cleaning and servicing.
- Models available with double-open-end (DOE) or single-open-end (SOE) cartridges.
