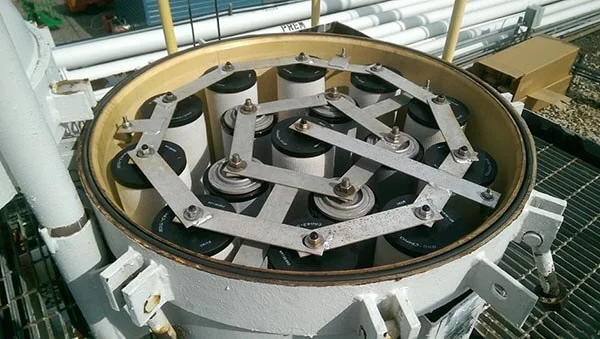

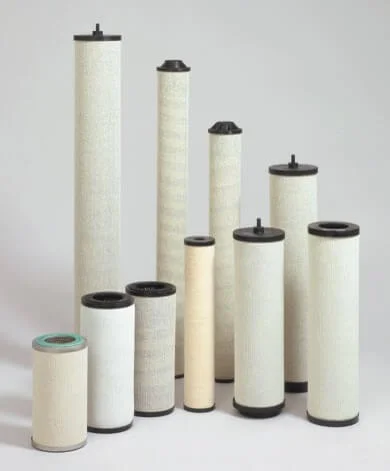

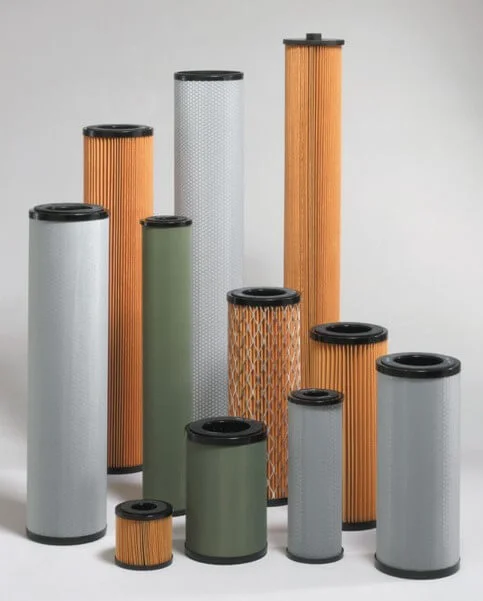

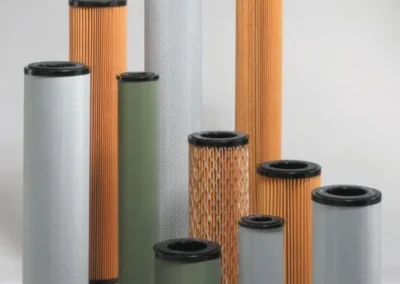

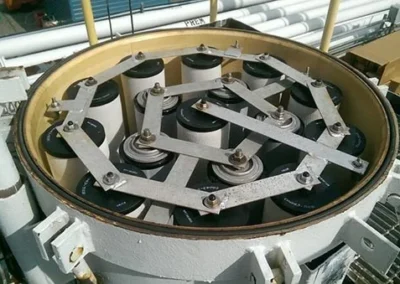

PFPUSA has a large inventory of two-stage coalescer separators in stock to handle any fuel contamination issues. The coalescer separator housings contain both first-stage coalescer and second-stage separator cartridges with no internal moving parts. They are designed to meet commercial and military Energy Institute (EI) test specifications.

Our coalescer separators are available in flow rates of 14 to 3,000 GPM. They are designed to remove free water from #2 diesel fuel, jet fuel, gasoline, and ISO 32 turbine oil.

They are available for short or long term rentals.

Materials of Construction

Carbon Steel
Interior – Epoxy Coated
Exterior – Prime Coated

Coalescer Separator Inventory

(Please note, we are continually adding to our fleet. If you don’t see what you need here, give us a call with you requirements and we help you determine the best possible equipment required to solve your problem.)

Model #:Description:
VCS-0011,500 GPM Vertical Coalescer Separator Vessel; ASME Code Stamped; 8”-150# Connections; 150 PSIG @ 200°F, accepts (11) Coalescer Elements and (5) Separator Elements

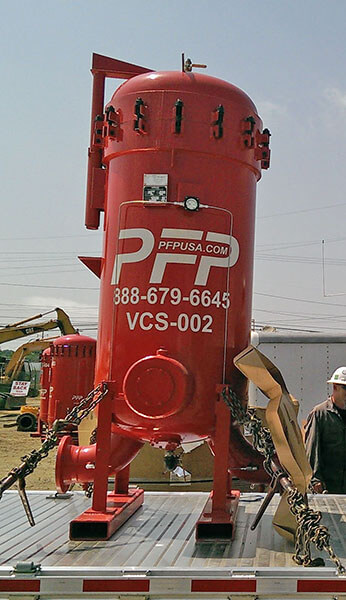

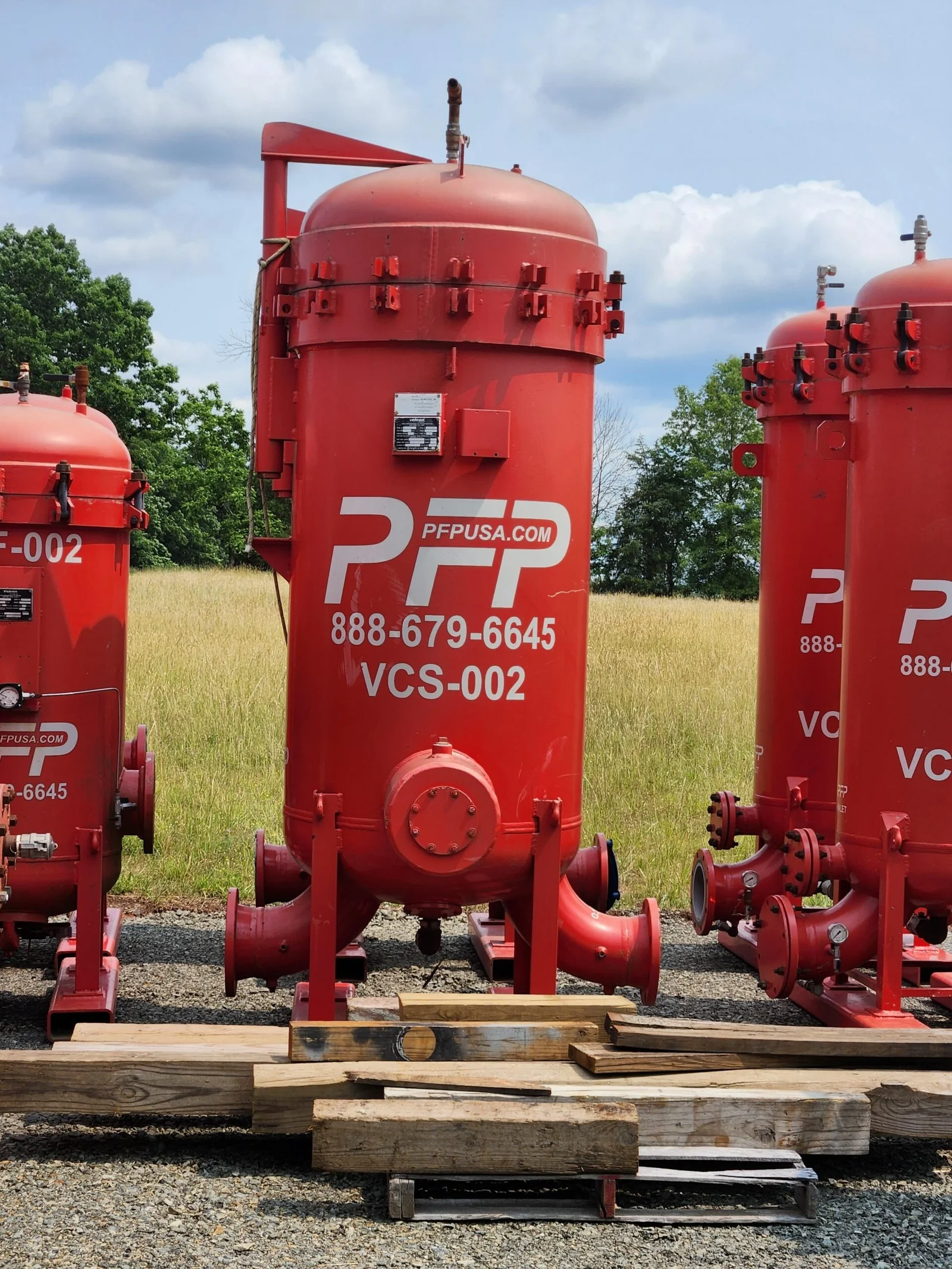

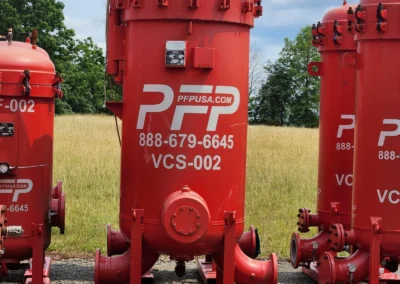

VCS-0021,500 GPM Vertical Coalescer Separator Vessel; ASME Code Stamped; 8”-150# Connections; 150 PSIG @ 200°F, accepts (11) Coalescer Elements and (5) Separator Elements

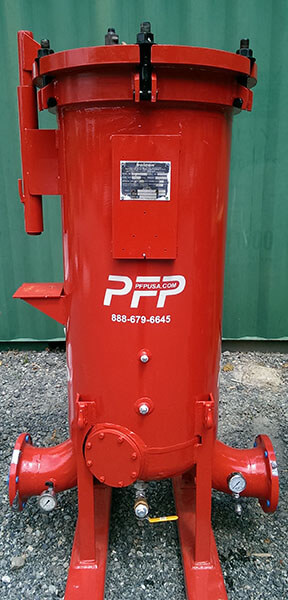

VCS-003500 GPM Vertical Jet Fuel Coalescer Separator Vessel, 6”-150# Connections; 150 PSIG @ 200°F, accepts (5) Coalescer Elements and (2) Separator Elements
VCS-0041,200 GPM Vertical Coalescer Separator Vessel; ASME Code Stamped; 8”-150# Connections; 150 PSIG @ 200°F, accepts (11) Coalescer Elements and (5) Separator Elements

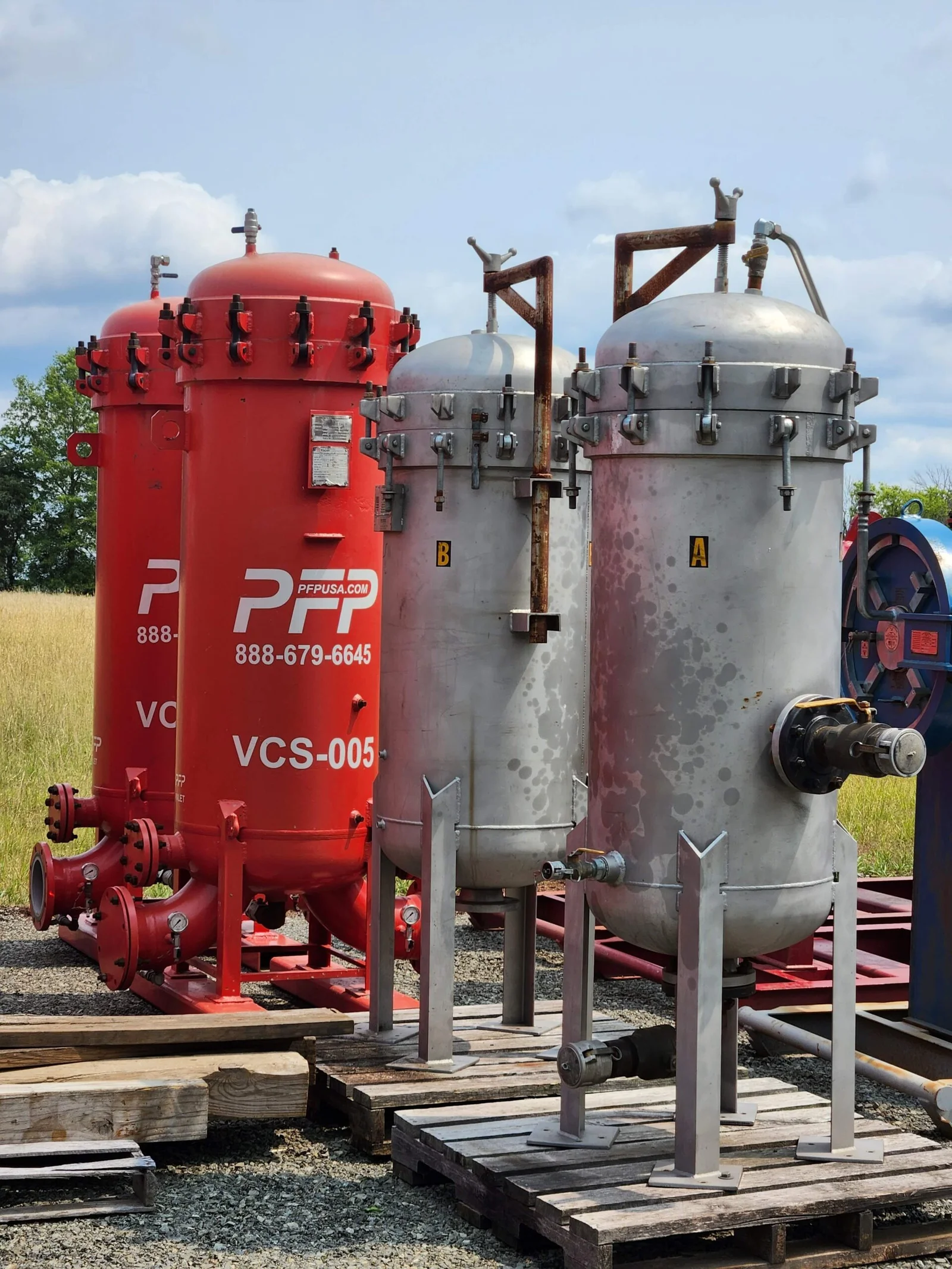

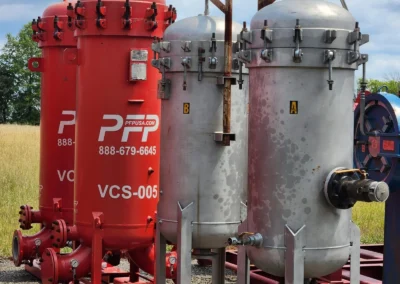

VCS-0051,200 GPM Vertical Coalescer Separator Vessel; ASME Code Stamped; 8”-150# Connections; Design Pressure: 275 PSI @ 140°F Max, -20°F Min, accepts (8) Coalescer Elements and (3) Separator Elements
VCS-0061,200 GPM Vertical Coalescer Separator Vessel; ASME Code Stamped; 8”-150# Connections; Design Pressure: 275 PSI @ 140°F Max, -20°F Min, accepts (8) Coalescer Elements and (3) Separator Elements
VCS-0071,200 GPM Vertical Coalescer Separator Vessel; ASME Code Stamped; 8”-150# Connections; Design Pressure: 275 PSI @ 140°F Max, -20°F Min, accepts (8) Coalescer Elements and (3) Separator Elements
HFCS-001Two-Stage Horizontal Coalescer to remove solids and liquids from a natural gas stream, Inlet/Outlet; 12”-150# | MAWP 270 PSIG @ 150°F | MDMT -20°F @ 270 PSIG
HFCS-002Two-Stage Horizontal Coalescer to remove solids and liquids from a natural gas stream, Inlet/Outlet; 6”-600# | MAWP 1157 PSIG @ 250°F | MDMT -20°F @ 1157 PSIG

Downloads

Coalescer Separators General Description Liquid Separation Application Information Data Sheet Separator Filter Cartridges

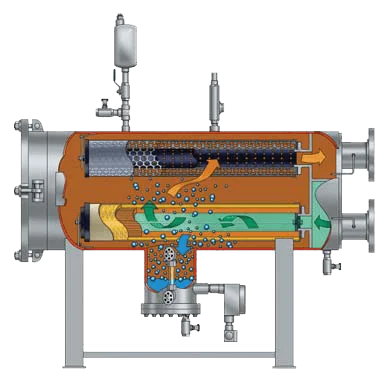

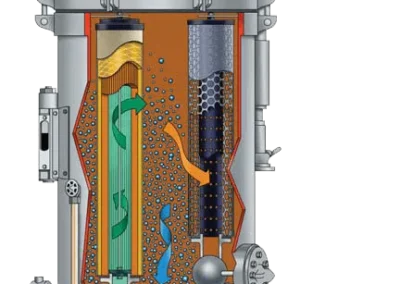

  • Vertical & horizontal configurations available
  • Designed to filter solids and separate water from fuels
  • Easy service and reduced maintenance costs
  • Qualified to 5th Edition of EI 1581, Category C, Type S
  • EI 1596 Design & Construction
  • Built to ASME Code, Section VIII, stamped and certified or "CE" marked
  • Automatic air eliminator
  • Differential pressure gauge
  • Pressure relief valve
  • Sampling probe
  • Cartridge hoist assembly
  • Working platform, ladder and handrails on 42" (1067 mm) OD and larger housings
  • Removable bundle design

We can supply you with the temporary Cargo Hose, Gate Valves, Tees, Elbows, Pump, Portable Containment, and many more to provide you a complete turnkey set up. We have service crews available to set up, monitor, and breakdown the temporary systems as well.

Give us a call to discuss your application….888-679-6645!
