These air and gas pipeline filters offer exceptional protection for compressed gas pipelines, air dryers, pneumatic controls, and other pipeline equipment. They are fabricated from rugged enameled carbon steel or 304SS, designed, constructed, and stamped, in accordance with ASME Boiler and Pressure Vessel Code requirements for unfired pressure vessels. Any model can be readily modified at your request to more exactly fit your needs.
They come in standard connection sizes from 1” to 12”. Raised face flanges (RF) in-line connections are std. Alternative orientations and sizes are available upon request. A simple blind flange closure assembly is standard on all models.
Materials of Construction
Enameled Carbon Steel
304 Stainless Steel
Housing Model No. | Conn. Size | Conn. Type | Cover Style | Dimensions in Inches | Wgt. Lbs. | |||
---|---|---|---|---|---|---|---|---|
OD | OH | C | Serv. Space | |||||
P1480-MT-010 | 1” | MPT | Blind Flg. | 6-5/8 | 24 | 16 | 16 | 130 |
P1480-MT-015 | 1.5” | MPT | Blind Flg. | 6-5/8 | 28 | 16 | 16 | 140 |
P1480-MT-020 | 2” | MPT | Blind Flg. | 8-5/8 | 28 | 16 | 16 | 150 |
P1480-RF-030 | 3” | Flg. | Blind Flg. | 8-5/8 | 39 | 20 | 24 | 200 |
P1480-RF-040 | 4” | Flg. | Blind Flg. | 10-3/4 | 42 | 20 | 24 | 325 |
P1480-RF-060 | 6” | Flg. | Blind Flg. | 12-3/4 | 51 | 24 | 26 | 500 |
P1480-RF-080 | 8” | Flg. | Blind Flg. | 16 | 66 | 28 | 36 | 850 |
P1480-RF-100 | 10” | Flg. | Blind Flg. | 20 | 76 | 32 | 36 | 1200 |
P1480-RF-120 | 12” | Flg. | Blind Flg. | 24 | 78 | 36 | 39 | 1400 |
Downloads

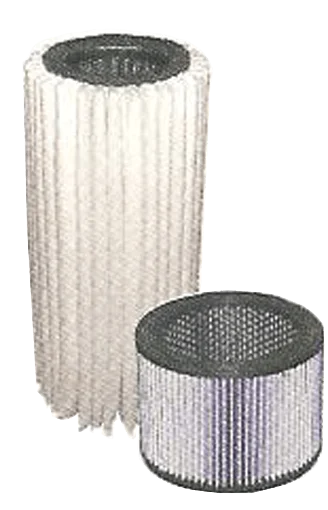

Partriculate Filter Vessels to 1480 PSIG- Intake Air Flows to 200,000 SCFM Std.
- ASME U Stamp Std., National Board Registered
- Low Pressure Drop
- Maximum Useful Filter Area and Dirt Holding Capacity
- Hinged Flange, Lift Lug, and 18” Carbon Steel Leg Supports Standard
- Service Access W/O Breaking Connections
- 304SS Throat Safety Cages Standard
- ∆P Taps Standard
- Carbon Steel leg supports in any length
- Gauges
- Special Finishes
- Head Lift Assemblies
- Other Materials of Construction
