Flow Rates: Flow Rates Range from 1 GPM to 11 GPM

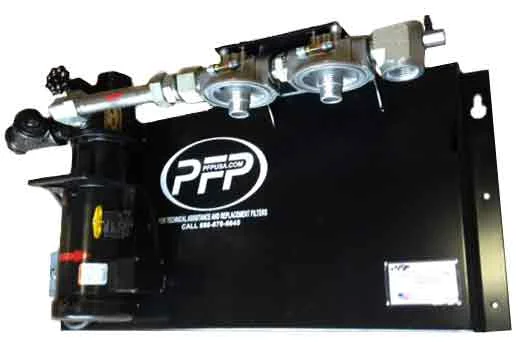

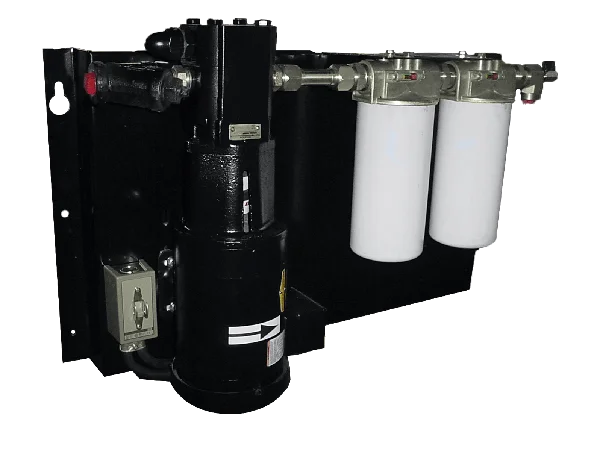

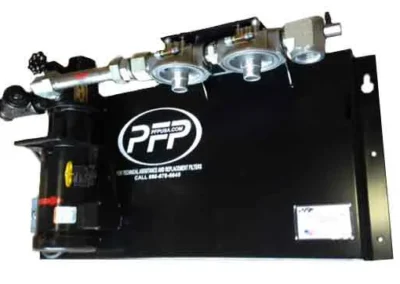

Our SFP Spin-On Filter Panel is ideal for hydraulic fluids (ISO VG22 ~ ISOVG68). Our SFP Spin-On Filter Panel is designed for filtering new fluids during transfer and replenishment, flushing fluids already in service, removing particulate and water contamination, and conditioning bulk oil before use. The two stage filtration offers the advantage of removing both particulate and water contamination. We also offer an optional inline particle counter to determine your ISO Code real time.

The SFP Filter Panels provide fixed-mount offline filtration and a turnkey approach to supplemental filtration for your in-plant machinery and hydraulic equipment. The SFP Filter Panel is constructed with a strong, lightweight powder coated steel frame. It is available with Beta 1000 rated Microglass and Water Absorbing filter elements. It also includes an oil sampling port on the outlet connection to provide ISO 4406 code comparisons. This will allow you to meet your target ISO cleanliness codes and prolong the life of your equipment and fluids.

New oil is clean? On average new oil delivered from a drum has a cleanliness level of ISO cleanliness code of 22/21/19. Water content from new oil averages 200 to 300 PPM.

The SFP Filter Panel is available with a Mechanical Pump and Motor combination as a standard. A Pneumatic Pump is available as an option (check out our Panimal Video on YouTube). Please contact your sales representative for additional information.

Recommended Viscosity Range*
5 GPM*: 28 SSU ~ 2000 SSU, 6 cSt ~ 400 cSt
11 GPM*: 28 SSU ~ 1000 SSU, 6 cSt ~ 200 cSt
*At maximum viscosity, clean element pressure drop on 3um Media Please check maximum viscosity of oil in coldest condition.

Downloads

SFP Spin-On Filter Panel
  • BETA 1000 Rated Filter Elements per ISO 16889 Standards
  • Water Removal Filter Elements
  • Upstream and Downstream Oil Sampling Ports

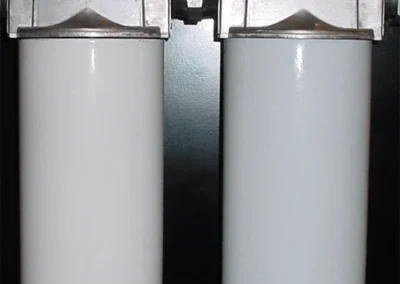

  • True Differential Indicators
  • Dual-Stage Filtration
  • 25 PSID By-pass
  • ISO Viscosity Range of ISO 22 to ISO 320
  • Seamless Stainless Steel Tubing with JIC Fittings
  • Flow Rates Range from 1 GPM to 11 GPM
  • Electrical Service
  • 1Phase/60Hz/115/230V
  • 1Phase/50Hz/120/230V
  • 3Phase/60Hz/230/460V
  • 3Phase/50Hz/380-450V
  • Explosion Proof (Class 1)
  • Pump Specifications
  • Self-Priming Positive Displacement Gear Pump
  • Internal Relief Valve Set at 100 PSI
  • Motor Options
  • Class 1 Explosion Proof
  • Pneumatic Pump with Pulsation Dampener
  • 50 Hertz, 3 Phase
  • Material of Construction
  • Assembly Frame: Powder Coated Steel
  • Inlet Suction Strainer for Pump Protection
  • Filter Assembly: Aluminum Head, Steel Canister
  • Hoses: Medium Pressure Hydraulic
  • Operating Temperature
  • Nitrile (Buna-N): -40 °F to 150 °F
  • Fluorocarbon (Viton)*-15 °F to 200 °F
  • *High Temperature/Phosphate Ester Design
  • Hydraulic Oil
  • Turbine Oil
  • Lubrication Oil
  • Gear Oil (ISO VG 220 ~ VG 320)
  • Transformer Oil
  • Diesel Fuel
  • Phosphate Ester (Fyrquel EHC Fluid)
  • Filter By-Pass (Transfer Pump)
  • Inline Digital Particle Counter
  • Variable Frequency Drive (VFD)
  • Wands: Stainless Steel Wands
