Flow Rates: Flow Rates Range from 3.4 GPM to 49 GPM (~13 LPM to ~185 LPM)

Our PFBC Pneumatic Bag Cart utilizes the industry standard #2 Size Bag Housing. The PFCB Filter Cart is ideal for batch processing, or filtering from tanks or drums. It can be used for filtering new fluids during transfer and replenishment, as well as, filtering fluids currently in service. Our Bag Filter Carts are most effective controlling particulate problems before they cause damage to critical production equipment.

Our PFBC Filter Cart utilizes a positive displacement pneumatic pump that transfers fluids by movement of diaphragms driven by compressed air. Our PFBC Filter Cart incorporates a pulsation dampener which acts as an air cushion and automatically adjusts to the pressure change and absorbs any pulsation.

Our PFBC Filter Carts can be used with coolants, metal working, and other fluids. Most of these fluids are out of spec before they even come in contact with the hydraulic or lube systems. Contamination enters the fluid during processing, mixing, handling and storage. Our portable carts are the ideal means of pre-filtering and transferring these fluids.

Downloads

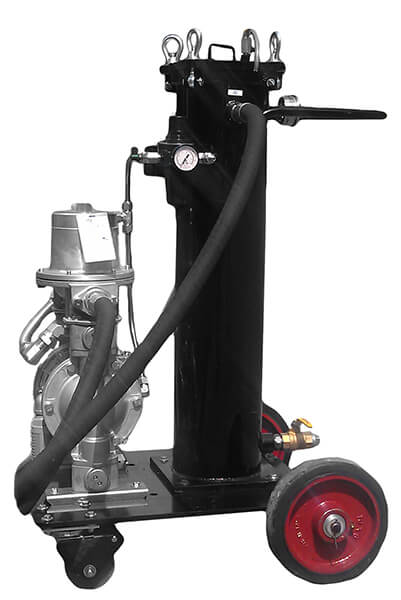

PFBC Pneumatic Bag Cart

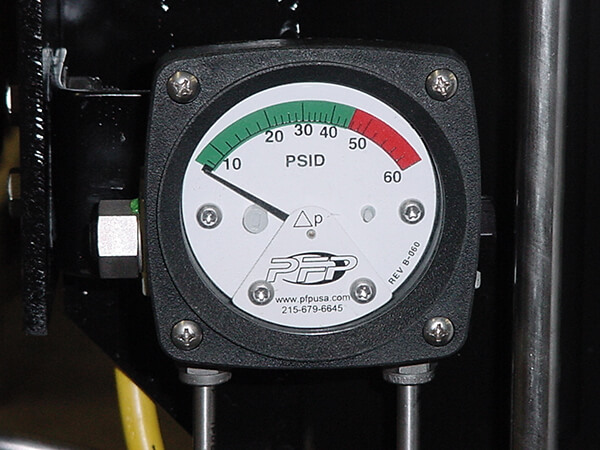

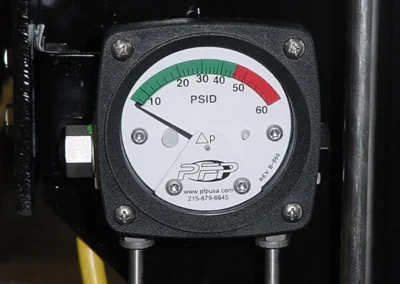

  • Pressure Gauge
  • Condition Bulk Fluid Before Use
  • Seamless Stainless Steel Tubing with JIC Fittings
  • (2) Medium Pressure Hydraulic Hoses
  • Pneumatic Pump – No Electricity Required
  • Pulsation Dampener
  • Powder Coated, Epoxy Lined #2 Style Bag Housing
  • Filter Regulator – Variable Flow
  • Oil Sampling Port
  • Flow Rates Range from 3.4 GPM to 49 GPM (~13 LPM to ~185 LPM)
  • Pump Specifications
  • Self-Priming Pneumatic Driven Pump
  • Variety of Bladder Materials Available for Every Application
  • Material of Construction
  • Assembly Frame: Powder Coated Carbon Steel Platform
  • Tires: 10” Wheels (Puncture-Resistant)
  • Rigid-Locking Swivel Casters
  • Filter Housing – Powder Coated, Epoxy Lined, Carbon Steel
  • Hoses: Medium Pressure Hydraulic
  • Wands: 40” Stainless Steel
  • Operating Temperature
  • Nitrile (Buna-N): -40F to 150F
  • Fluorocarbon (Viton)*: -15F to 200F
  • *High Temperature/Phosphate Ester Design
  • Hydraulic Oil
  • Turbine Oil
  • Lubrication Oil
  • Gear Oil (ISO VG 220 ~ VG 320)
  • Transformer Oil
  • Filter By-Pass (Transfer Pump)
  • Inline Digital Particle Counter
  • Flow Meter
  • Reservoir Holding Tank
  • Temperature Gauges
  • Throttle Valves
