Flow Rates: Flow Rates Range from 1 GPM to 5 GPM

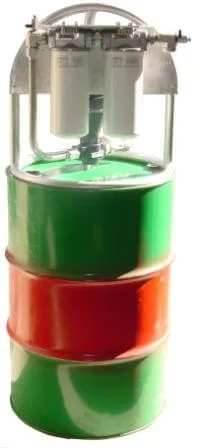

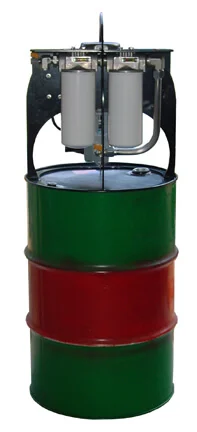

Precision Filtration Products’ Drum Top Filter Unit sit securely on top a 55 gallon drum. It is constructed with a strong, powder-coated steel, all welded frame. (Need a unit with a lighter frame? This unit is also available with an aluminum frame!) Our DTF Filter Unit is the ideal filtration system for recirculating or transferring fluids in and out of a 55 gallon drum.

The DTF Filter Unit is ideal for high viscosity lubrication and hydraulic oils. It can be used for filtering new fluids during transfer and replenishment, as well as filtering fluids currently in service. The two stage filtration offers the advantage of removing both particulate and water contamination.

The DTF Filter Unit includes sampling ports on the inlet and outlet connections to provide ISO Code comparisons. This will allow you to meet your target ISO Cleanliness Codes and prolong the life of your equipment and fluids. Saving you time and money.

Viscosity Chart

SSU Chart
Micron RatingPSID
5101520
1μm Microglass2,3234,6467,0009,292
3μm Microglass3,3056,6109,91513,220
6μm Microglass4,0628,14212,18616,248
12μm Microglass7,19914,39821,59728,795
25μm Microglass7,65415,30722,96130,614
*Manufacturer’s maximum recommended viscosity is 25,000 SSU. Calculations above are based on filtering ISO 320 @ 1 GPM at desired PSID. Effective filter sizing requires consideration of flow rate, viscosity (operating and cold start), fluid type, and degree of filtration. When properly sized, by-pass during cold start can be avoided/minimized and optimum element efficiency and life achieved.

Downloads

DTF Drum Top Filter Unit
  • BETA 1000 Rated Filter Elements per ISO 16889 Standards
  • Water Removal Filter Elements
  • Upstream and Downstream Oil Sampling Ports
  • True Differential Indicators
  • 25 PSID By-pass
  • Two-Stage Filtration
  • Low Center of Gravity
  • Lift Handle
  • ISO Viscosity Range of ISO 22 to ISO 320
  • Seamless Stainless Steel Tubing with JIC Fittings
  • Flow Rates Range from 1 GPM to 5 GPM
  • Electrical Service
  • 1Phase/60Hz/115/230V
  • 1Phase/50Hz/120/230V
  • 3Phase/60Hz/230/460V
  • 3Phase/50Hz/380-450V
  • Explosion Proof (Class 1)
  • Pump Specifications
  • Self-Priming Positive Displacement Gear Pump
  • Internal Relief Valve Set at 100 PSI
  • Motor Options
  • Class 1 Explosion Proof
  • Pneumatic Pump with Pulsation Dampener
  • 50 Hertz, 3 Phase
  • Material of Construction
  • Assembly Frame: Powder Coated Steel, All Welded
  • Inlet Suction Strainer for Pump Protection
  • Filter Assembly: Aluminum Head, Steel Canister
  • Hoses: Medium Pressure Hydraulic
  • Operating Temperature
  • Nitrile (Buna-N): -40F to 150F
  • Fluorocarbon (Viton)*: -15F to 200F
  • *High Temperature/Phosphate Ester Design
  • Hydraulic Oil
  • Turbine Oil
  • Lubrication Oil
  • Gear Oil (ISO VG 220 ~ VG 320)
  • Transformer Oil
  • Diesel Fuel
  • Phosphate Ester (Fyrquel EHC Fluid)
  • Filter By-Pass (Transfer Pump)
  • Inline Digital Particle Counter
  • Variable Frequency Drive (VFD)
  • Flow Meter

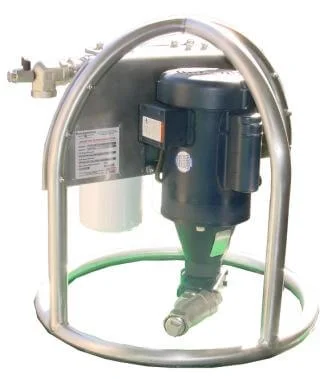

  • Light-weight Aluminum Frame
