Flow Rates: Flow rates from 360 to 4500 gpm (1,362.6 to 17,032.5 Lpm)

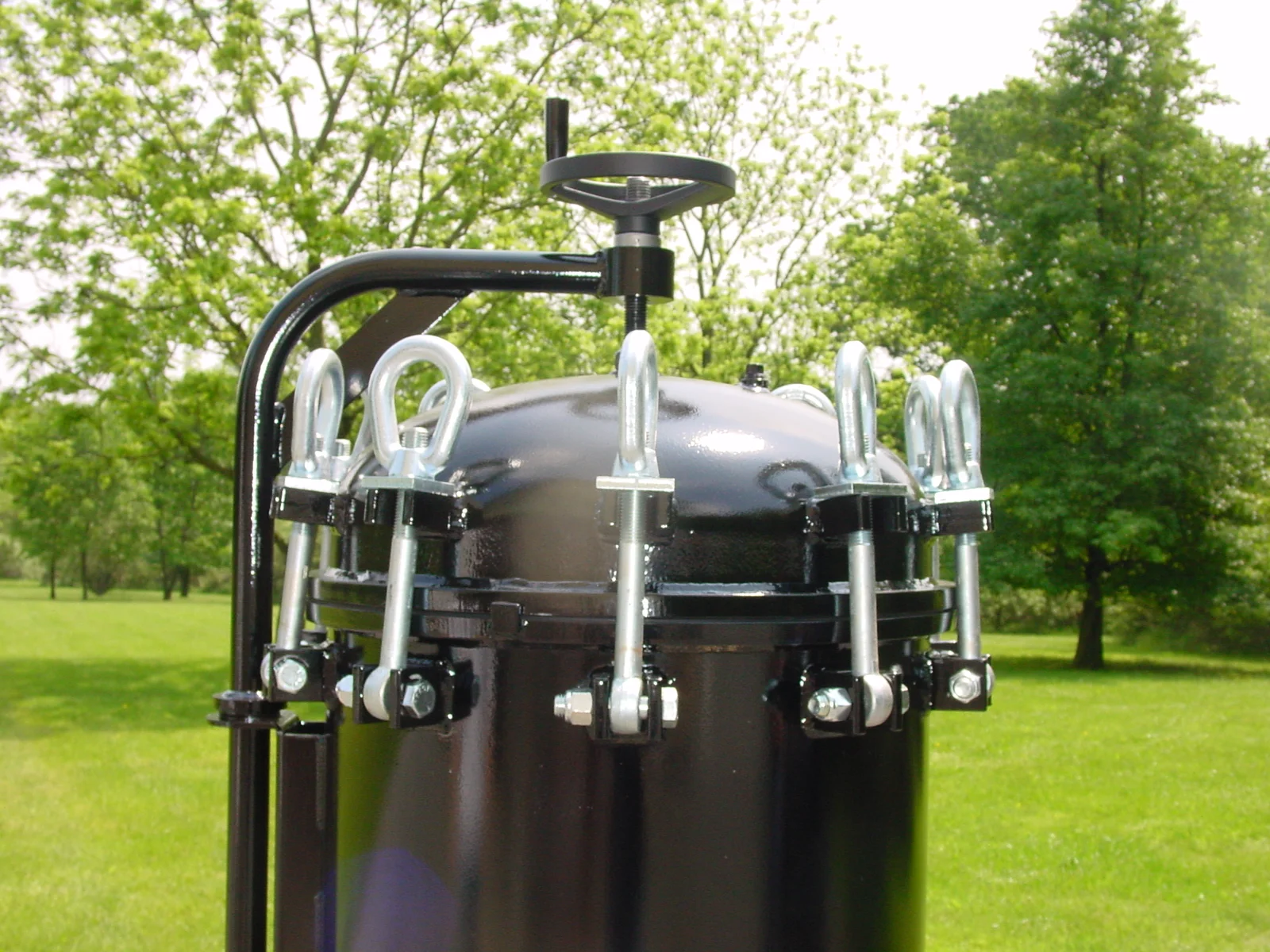

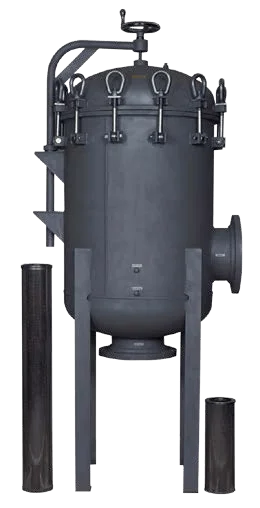

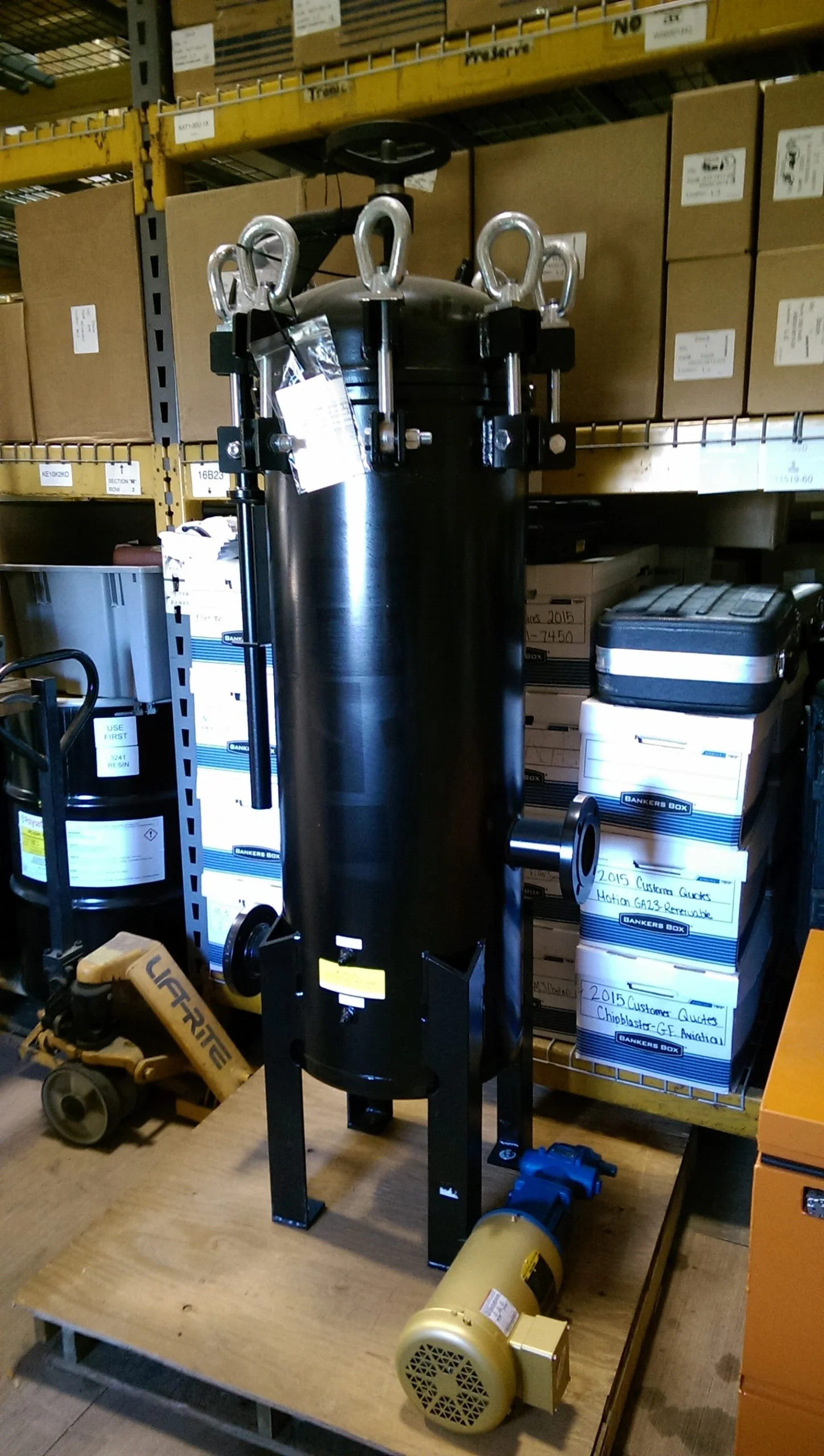

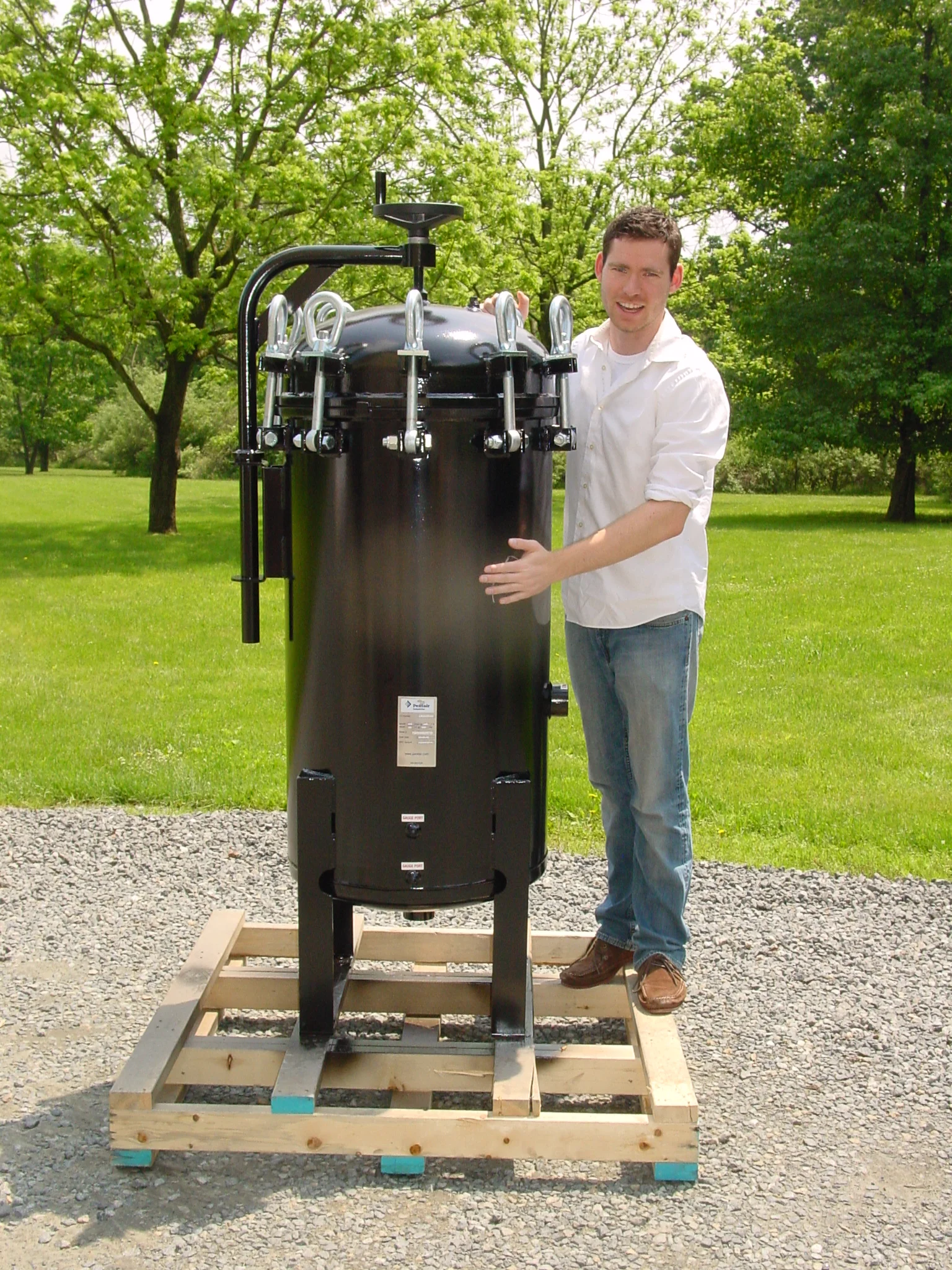

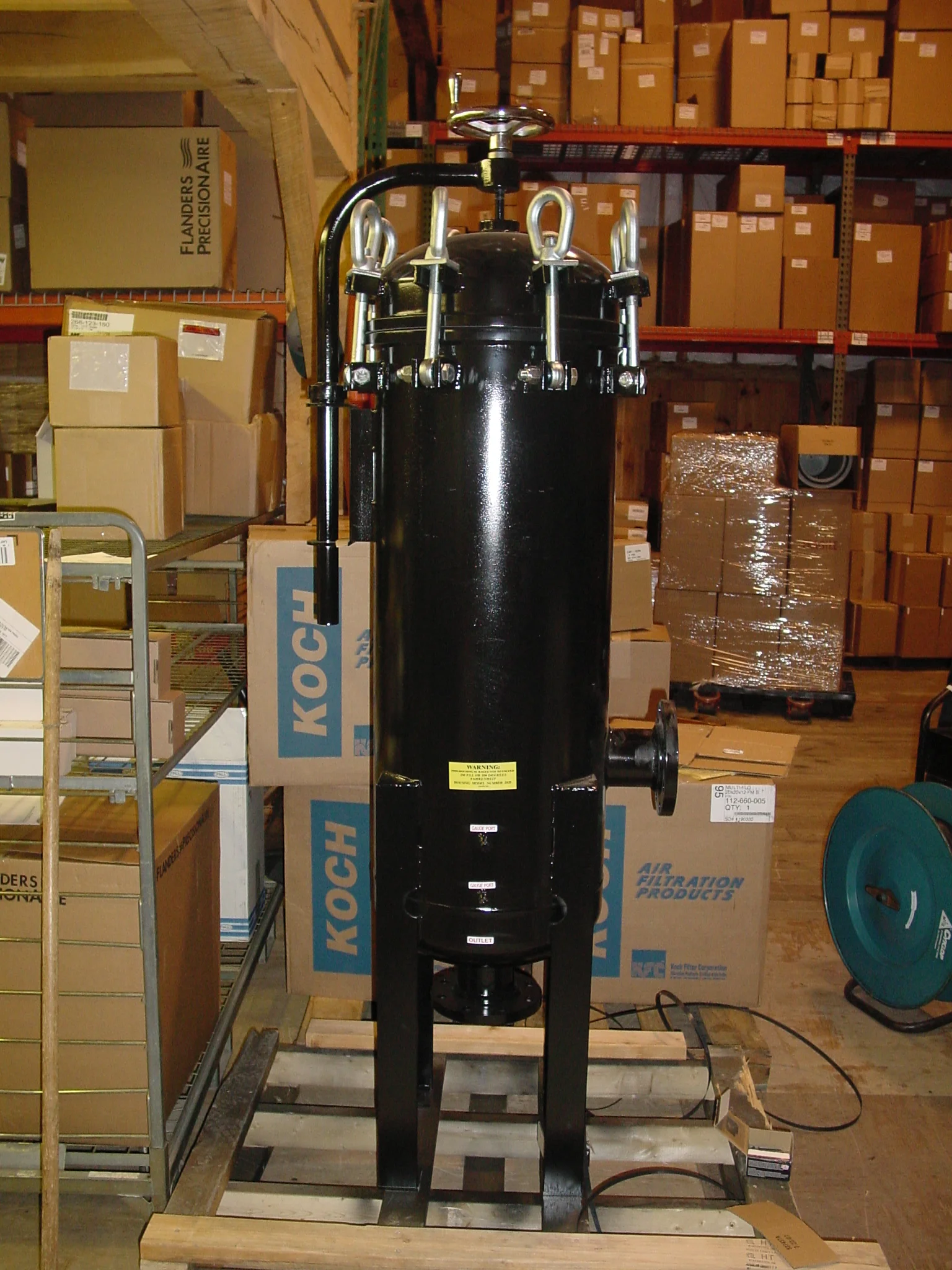

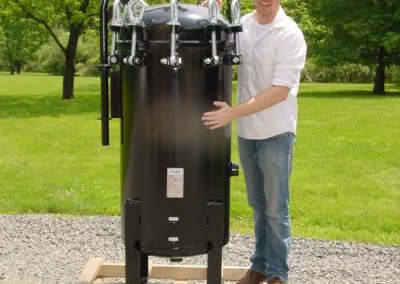

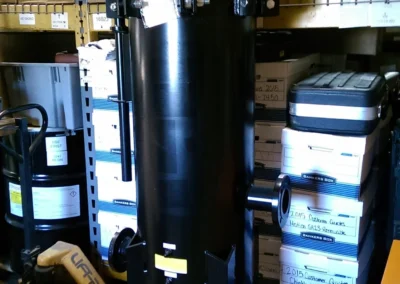

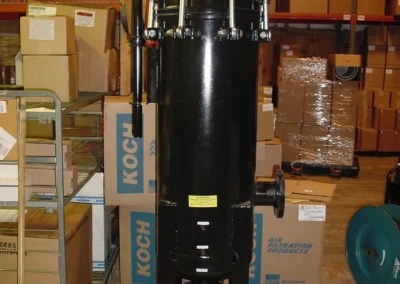

Multi-Round Series Hydraulic Cartridge Housings offer high flow rates, chemical compatibility and good particle retention. They are an ideal choice for particulate and contaminant removal with our hydraulic cartridges.

Applications:

  • Hydraulic and Lubrication oil
  • Fuel and Fuel oil
  • Rolling mill oil
  • Processing liquids
  • Bulk oil handling – Transfer and clean up
  • Off-line systems and flushing
  • Power generation
  • Primary metals
  • Mobile flushing systems
  • Particulate and water removal
  • Transfer line machining coolants
  • Large gearbox filtration
  • High flow Return-line filtration

Downloads

ISO Cleanliness Code Page Mulri Round Hydraulic Cartridge Housings
  • Flow rates from 360 to 4500 gpm (1,362.6 to 17,032.5 Lpm)
  • Carbon or Stainless Steel construction
  • Bearing-assisted Davit assembly
  • Buna-N lid seals
  • 150 PSI (10.3 bar) pressure rating
  • Differential, drain and vent ports
  • Heavy duty support legs
  • Two-part epoxy finish outside on carbon steel housings
  • Removable 2” heavy-wall center guide posts
  • 3-round to 38-round capacity
  • Full tie-rod element connections for positive seal
  • Duplexing for continual flow during maintenance
  • Hydraulic lid lift
  • Higher pressure rating
  • ASME Code U
  • Connection sizes and types
  • Hydraulic and Lubrication oil
  • Fuel and Fuel oil
  • Rolling mill oil
  • Processing liquids
  • Bulk oil handling - Transfer and clean up
  • Off-line systems and flushing
  • Power generation
  • Primary metals
  • Mobile flushing systems
  • Particulate and water removal
  • Transfer line machining coolants
  • Large gearbox filtration
  • High flow Return-line filtration
